STN851

STN851 Overview

Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Configuration Single Transistor type: NPN Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 150 @ 2A, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 200mA, 5A Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 320 mV The 150 V voltage rating is 40 V. 7 V rating of 5 V Max DC collector current: 5 A Gain-Bandwidth-Product: 130 MHz Minimum hfe for DC collector-base gain is 150. 350 of 605.

STN851 Image

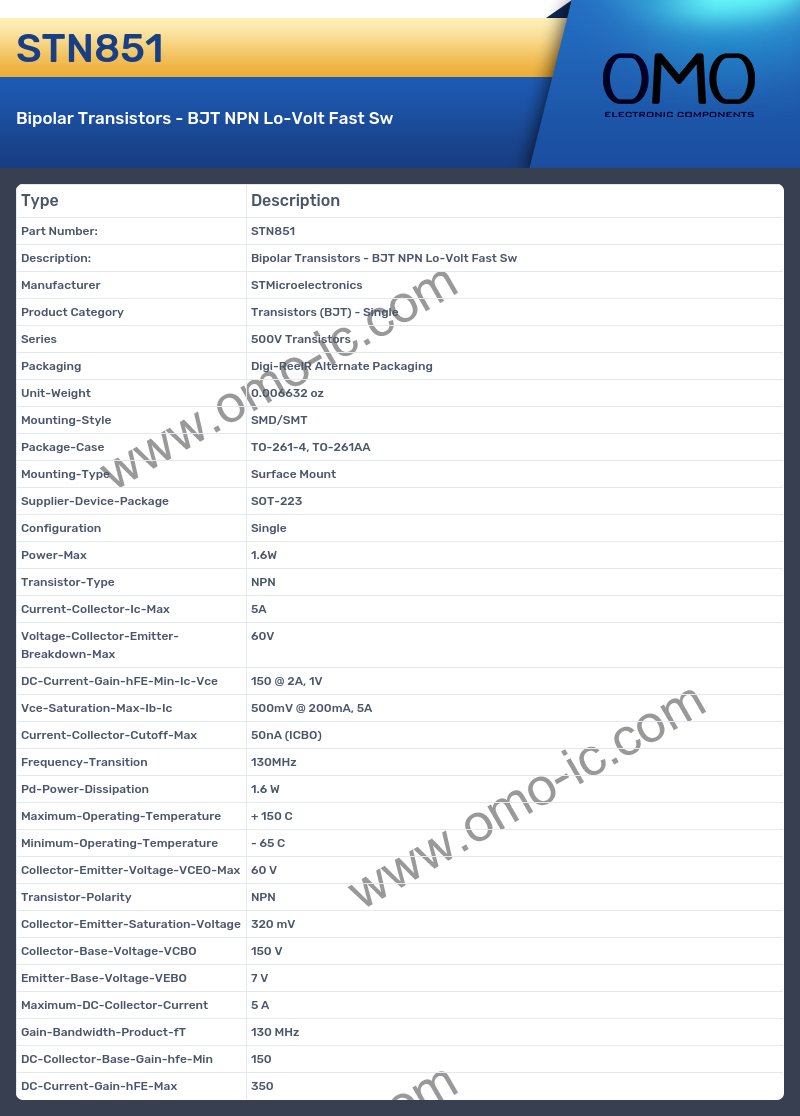

STN851 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case TO-261-4, TO-261AA
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-223
• Configuration Single
• Power-Max 1.6W
• Transistor-Type NPN
• Current-Collector-Ic-Max 5A
• Voltage-Collector-Emitter-Breakdown-Max 60V
• DC-Current-Gain-hFE-Min-Ic-Vce 150 @ 2A, 1V
• Vce-Saturation-Max-Ib-Ic 500mV @ 200mA, 5A
• Current-Collector-Cutoff-Max 50nA (ICBO)
• Frequency-Transition 130MHz
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 320 mV
• Collector-Base-Voltage-VCBO 150 V
• Emitter-Base-Voltage-VEBO 7 V
• Maximum-DC-Collector-Current 5 A
• Gain-Bandwidth-Product-fT 130 MHz
• DC-Collector-Base-Gain-hfe-Min 150
• DC-Current-Gain-hFE-Max 350
