STP75NS04Z

STP75NS04Z Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 85 ns of 16 ns. This product has a 248 ns of 16 ns. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 33 V. The 11 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 53 ns This product has a 16 ns. This product operates in Enhancement channel mode for optimal performance.

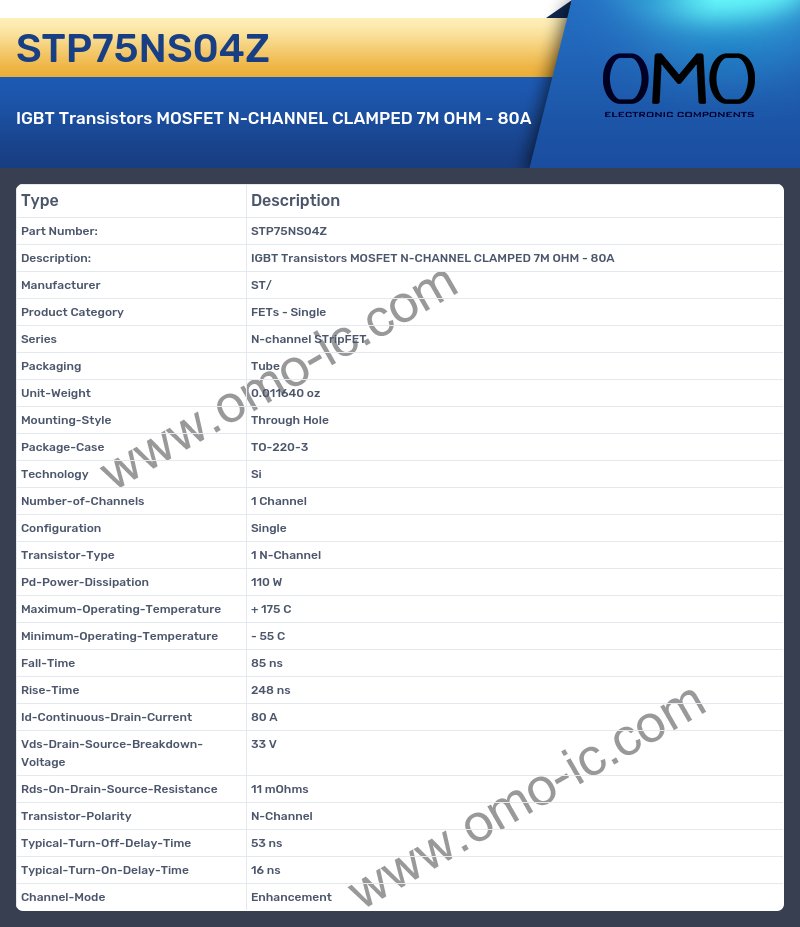

STP75NS04Z Image

STP75NS04Z Specifications

• Manufacturer ST/
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 110 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 85 ns
• Rise-Time 248 ns
• Id-Continuous-Drain-Current 80 A
• Vds-Drain-Source-Breakdown-Voltage 33 V
• Rds-On-Drain-Source-Resistance 11 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 53 ns
• Typical-Turn-On-Delay-Time 16 ns
• Channel-Mode Enhancement
