| Mfr. #: | STP80NF12 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | MOSFET N-CH 120V 80A TO-220 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STP80NF12 Datenblatt |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 115 ns of 16 ns. This product has a 145 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 120 V. The 18 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 134 ns This product has a 40 ns. This product features a 80 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

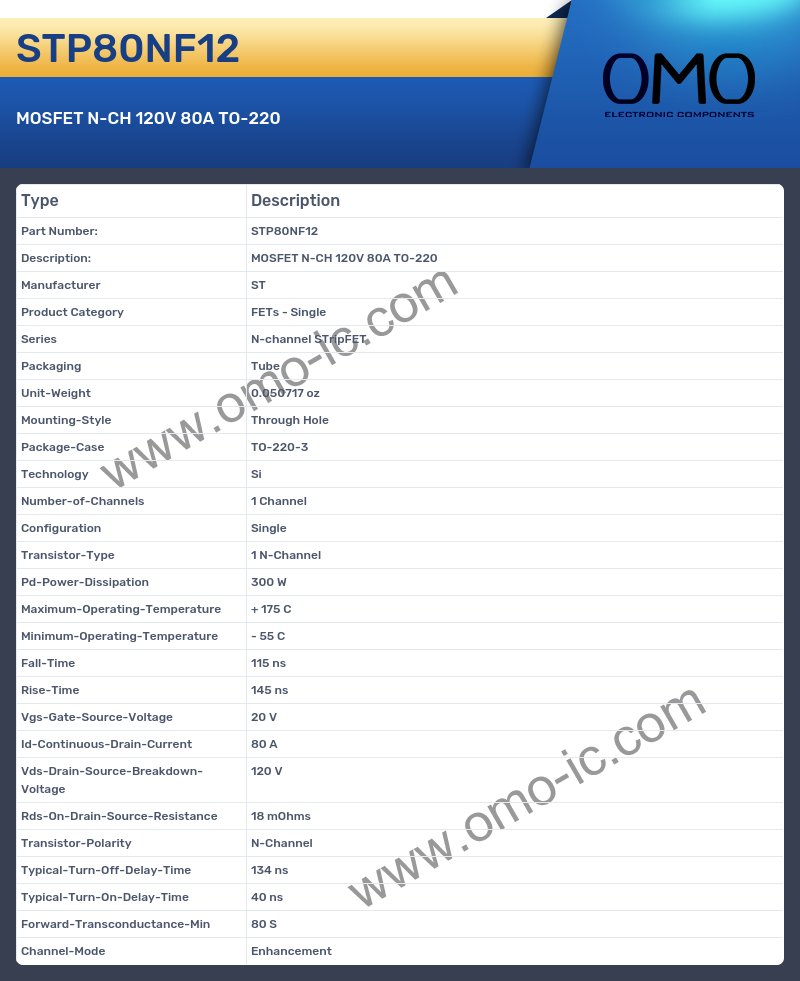

STP80NF12 Specifications
