| Mfr. #: | STPS0520Z |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | DIODE SCHOTTKY 20V 500MA SOD123 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STPS0520Z Datenblatt |
Product belongs to the STPS0520Z series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOD-123 Si is the technology used. Surface Mount mounting type Supplier device package: SOD-123 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 150μA @ 20V Current-Reverse-Leakage-Vr 1. Vf Max 385mV @ 500mA is the Voltage-Forward; Maximum DC reverse voltage 20V The 500mA Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 125°C (Max) Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.385 V Ir-Reverse-Current is 150 uA. If-Forward-Current is 0.5 A. VRRM (20 V) Reverse Voltage 5.5 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

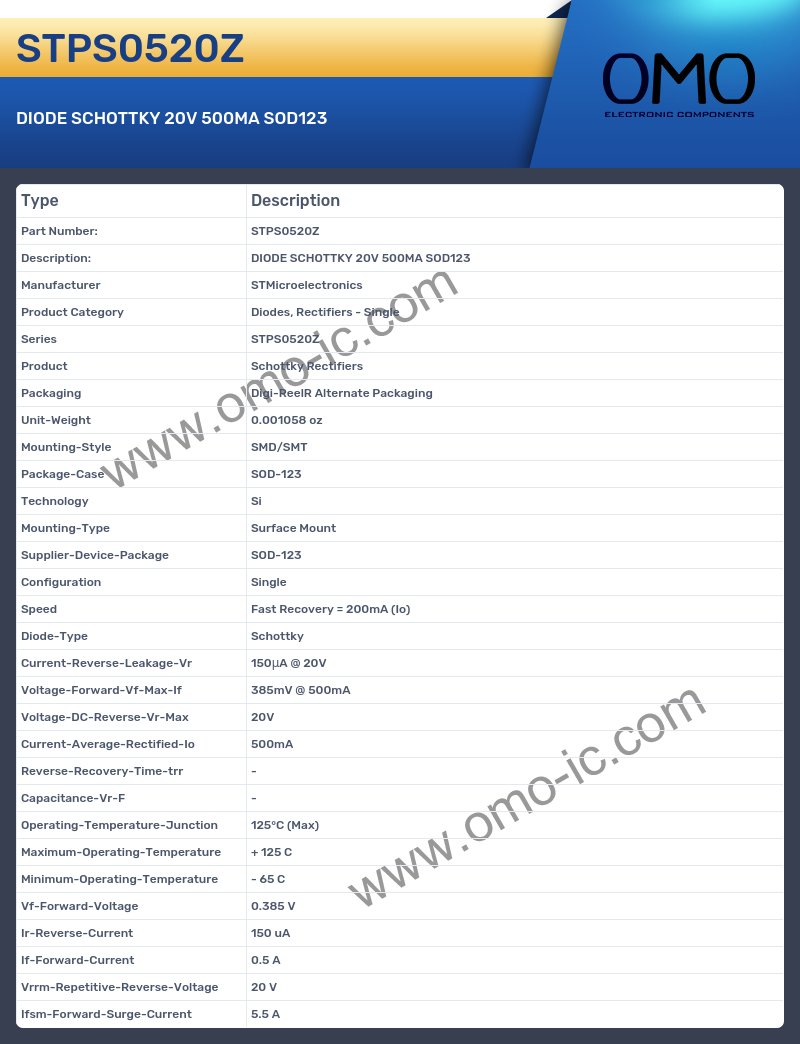

STPS0520Z Specifications
A: What is the Series of the product?
Q: The Series of the product is STPS0520Z.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Schottky Rectifiers
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.001058 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOD-123.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is SOD-123.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Speed?
Q: Yes, the product's Speed is indeed Fast Recovery = 200mA (Io)
A: Is the cutoff frequency of the product Diode-Type?
Q: Yes, the product's Diode-Type is indeed Schottky
A: Is the cutoff frequency of the product Current-Reverse-Leakage-Vr?
Q: Yes, the product's Current-Reverse-Leakage-Vr is indeed 150μA @ 20V
A: What is the Voltage-Forward-Vf-Max-If of the product?
Q: The Voltage-Forward-Vf-Max-If of the product is 385mV @ 500mA.
A: At what frequency does the Voltage-DC-Reverse-Vr-Max?
Q: The product Voltage-DC-Reverse-Vr-Max is 20V.
A: At what frequency does the Current-Average-Rectified-Io?
Q: The product Current-Average-Rectified-Io is 500mA.
A: At what frequency does the Capacitance-Vr-F?
Q: The product Capacitance-Vr-F is -.
A: Is the cutoff frequency of the product Operating-Temperature-Junction?
Q: Yes, the product's Operating-Temperature-Junction is indeed 125°C (Max)
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: At what frequency does the Vf-Forward-Voltage?
Q: The product Vf-Forward-Voltage is 0.385 V.
A: Is the cutoff frequency of the product Ir-Reverse-Current?
Q: Yes, the product's Ir-Reverse-Current is indeed 150 uA
A: At what frequency does the If-Forward-Current?
Q: The product If-Forward-Current is 0.5 A.
A: Is the cutoff frequency of the product Vrrm-Repetitive-Reverse-Voltage?
Q: Yes, the product's Vrrm-Repetitive-Reverse-Voltage is indeed 20 V
A: Is the cutoff frequency of the product Ifsm-Forward-Surge-Current?
Q: Yes, the product's Ifsm-Forward-Surge-Current is indeed 5.5 A
