| Mfr. #: | STPS1545G |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | DIODE SCHOTTKY 45V 15A D2PAK |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STPS1545G Datenblatt |
Product belongs to the STPS1545 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 45V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 30 A Ir-Reverse-Current is 200 uA. If-Forward-Current is 15 A. VRRM (45 V) Reverse Voltage 220 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

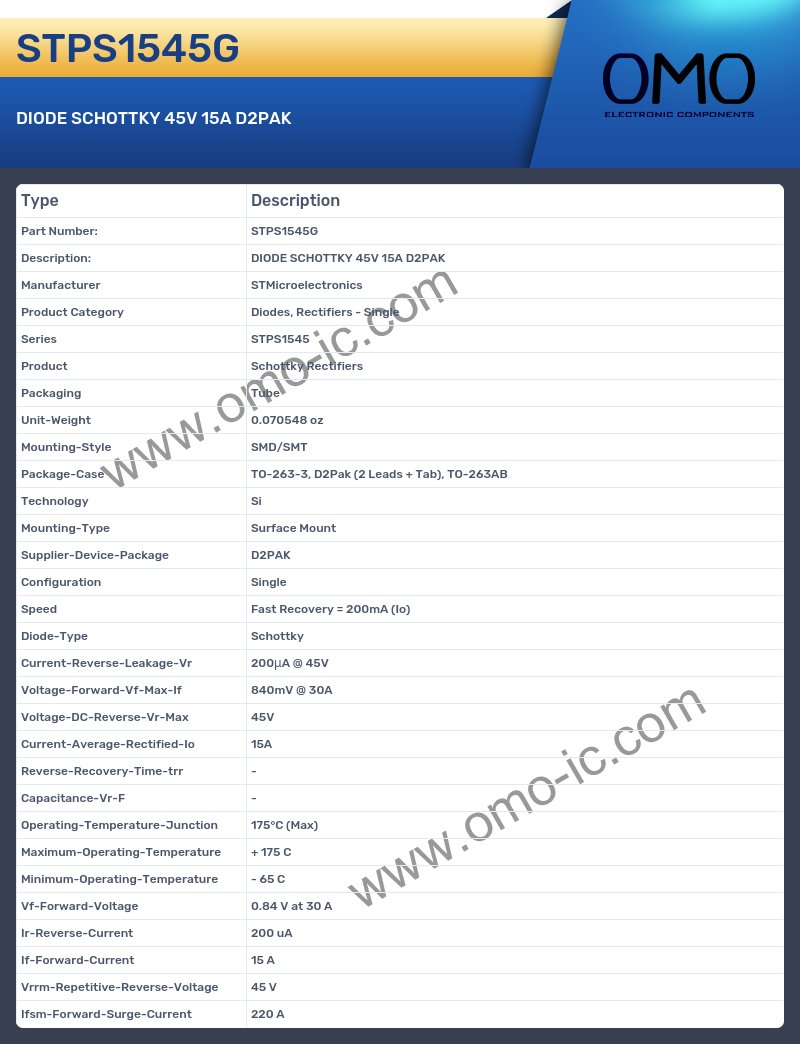

STPS1545G Specifications
A: What is the Series of the product?
Q: The Series of the product is STPS1545.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Schottky Rectifiers
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.070548 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-263-3, D2Pak (2 Leads + Tab), TO-263AB.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is D2PAK.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Speed of the product?
Q: The Speed of the product is Fast Recovery = 200mA (Io).
A: Is the cutoff frequency of the product Diode-Type?
Q: Yes, the product's Diode-Type is indeed Schottky
A: What is the Current-Reverse-Leakage-Vr of the product?
Q: The Current-Reverse-Leakage-Vr of the product is 200μA @ 45V.
A: Is the cutoff frequency of the product Voltage-Forward-Vf-Max-If?
Q: Yes, the product's Voltage-Forward-Vf-Max-If is indeed 840mV @ 30A
A: What is the Voltage-DC-Reverse-Vr-Max of the product?
Q: The Voltage-DC-Reverse-Vr-Max of the product is 45V.
A: Is the cutoff frequency of the product Current-Average-Rectified-Io?
Q: Yes, the product's Current-Average-Rectified-Io is indeed 15A
A: What is the Capacitance-Vr-F of the product?
Q: The Capacitance-Vr-F of the product is -.
A: At what frequency does the Operating-Temperature-Junction?
Q: The product Operating-Temperature-Junction is 175°C (Max).
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: Is the cutoff frequency of the product Vf-Forward-Voltage?
Q: Yes, the product's Vf-Forward-Voltage is indeed 0.84 V at 30 A
A: At what frequency does the Ir-Reverse-Current?
Q: The product Ir-Reverse-Current is 200 uA.
A: Is the cutoff frequency of the product If-Forward-Current?
Q: Yes, the product's If-Forward-Current is indeed 15 A
A: At what frequency does the Vrrm-Repetitive-Reverse-Voltage?
Q: The product Vrrm-Repetitive-Reverse-Voltage is 45 V.
A: Is the cutoff frequency of the product Ifsm-Forward-Surge-Current?
Q: Yes, the product's Ifsm-Forward-Surge-Current is indeed 220 A
