STPS20SM120SR

STPS20SM120SR Overview

Product belongs to the STPS20SM120S series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.073511 oz Through Hole Mounting-Style TO-262-3 Long Leads, I2Pak, TO-262AA Si is the technology used. Through Hole mounting type Supplier device package: I2PAK Configuration Dual Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 210μA @ 120V Current-Reverse-Leakage-Vr 1. Vf Max 890mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 120V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 890 mV VR Reverse Voltage of 120 V Ir-Reverse-Current is 210 uA. If-Forward-Current is 20 A. VRRM (120 V) Reverse Voltage 220 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

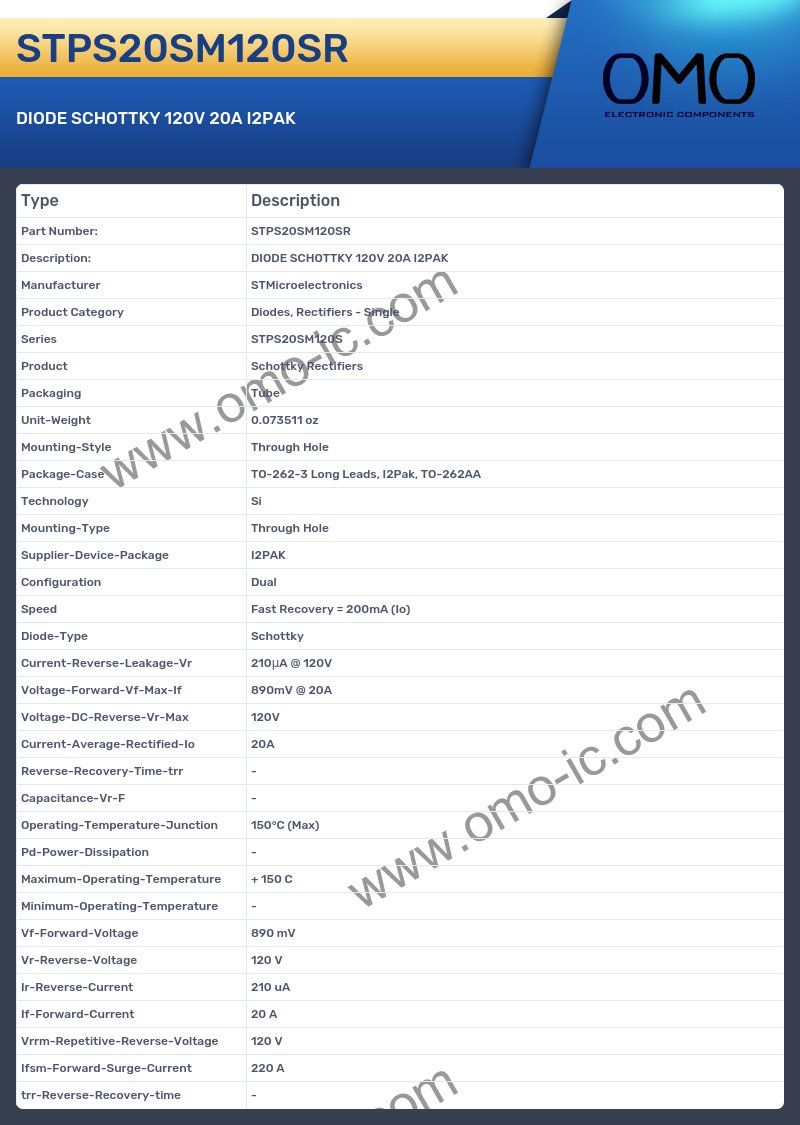

STPS20SM120SR Image

STPS20SM120SR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20SM120S
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.073511 oz
• Mounting-Style Through Hole
• Package-Case TO-262-3 Long Leads, I2Pak, TO-262AA
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package I2PAK
• Configuration Dual
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 210μA @ 120V
• Voltage-Forward-Vf-Max-If 890mV @ 20A
• Voltage-DC-Reverse-Vr-Max 120V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 890 mV
• Vr-Reverse-Voltage 120 V
• Ir-Reverse-Current 210 uA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 120 V
• Ifsm-Forward-Surge-Current 220 A
• trr-Reverse-Recovery-time -
