STPS2L60UF

STPS2L60UF Overview

Product belongs to the STPS2L60 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DO-221AA, SMB Flat Leads Si is the technology used. Surface Mount mounting type Supplier device package: SMBflat Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 600mV @ 2A is the Voltage-Forward; Maximum DC reverse voltage 60V The 2A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.6 V Ir-Reverse-Current is 100 uA. If-Forward-Current is 2 A. VRRM (60 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS2L60UF Image

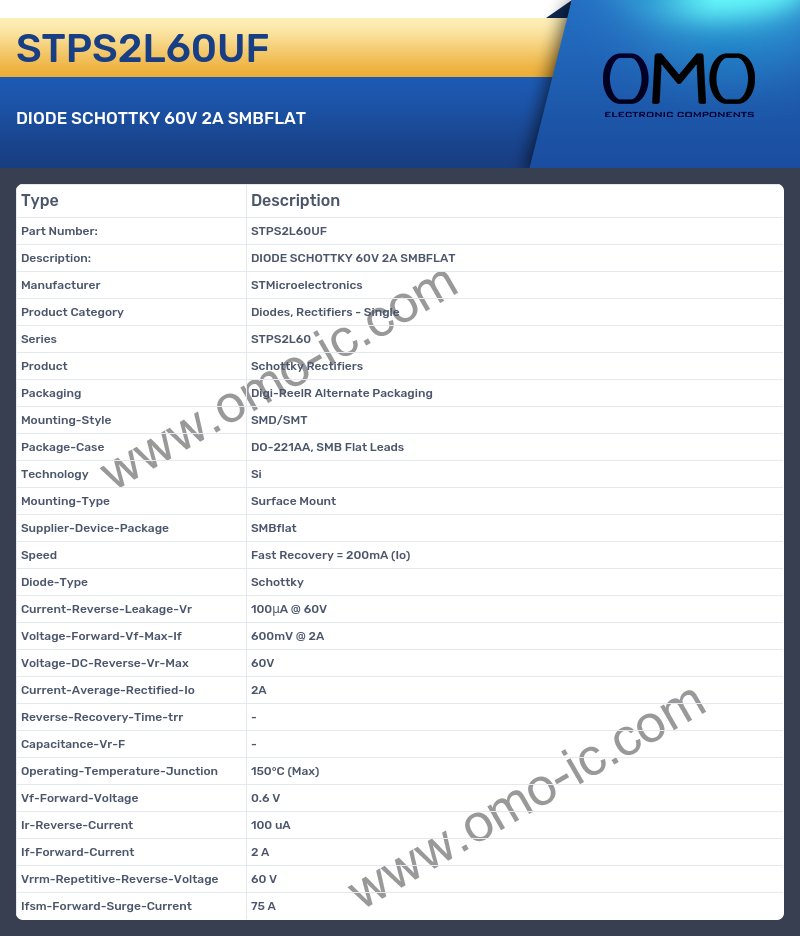

STPS2L60UF Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS2L60
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DO-221AA, SMB Flat Leads
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMBflat
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 60V
• Voltage-Forward-Vf-Max-If 600mV @ 2A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 2A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.6 V
• Ir-Reverse-Current 100 uA
• If-Forward-Current 2 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 75 A
