STPS3L60Q

STPS3L60Q Overview

Product belongs to the STPS3L60 series. This product is categorized as Schottky Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.012346 oz Through Hole Mounting-Style DO-204AC, DO-15, Axial Si is the technology used. Through Hole mounting type Supplier device package: DO-15 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 60μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 620mV @ 3A is the Voltage-Forward; Maximum DC reverse voltage 60V The 3A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.79 V at 6 A Ir-Reverse-Current is 150 uA. If-Forward-Current is 3 A. VRRM (60 V) Reverse Voltage 100 A IFSM Forward Surge Current

STPS3L60Q Image

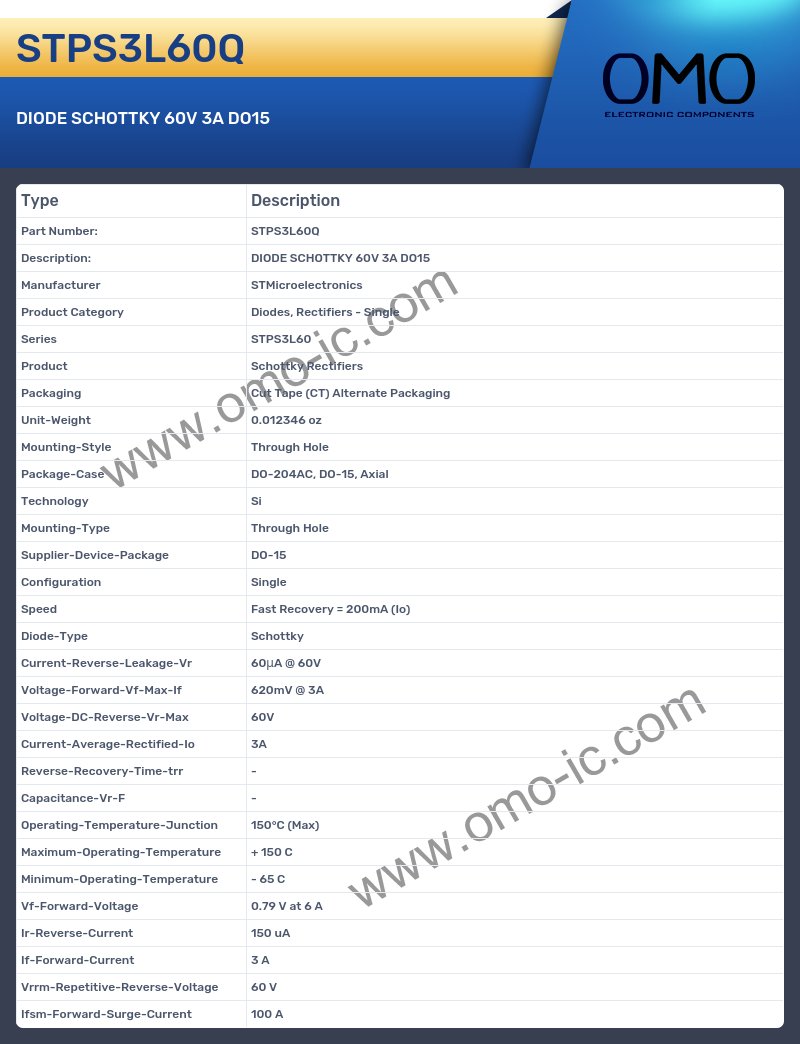

STPS3L60Q Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS3L60
• Product Schottky Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.012346 oz
• Mounting-Style Through Hole
• Package-Case DO-204AC, DO-15, Axial
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package DO-15
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 60μA @ 60V
• Voltage-Forward-Vf-Max-If 620mV @ 3A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 3A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.79 V at 6 A
• Ir-Reverse-Current 150 uA
• If-Forward-Current 3 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 100 A
