STPSC806G-TR

STPSC806G-TR Overview

Product belongs to the STPSC806 series. This product is categorized as Schottky Silicon Carbide Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz Through Hole Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB SiC is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: No Recovery Time > 500mA (Io) Silicon Carbide Schottky diode type The 100μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.7V @ 8A is the Voltage-Forward; Maximum DC reverse voltage 600V The 8A Current-Average-Rectified-Io; The capacitance value of this product is 450pF @ 0V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 1.7 V Ir-Reverse-Current is 0.1 mA. If-Forward-Current is 8 A. VRRM (600 V) Reverse Voltage 30 A IFSM Forward Surge Current

STPSC806G-TR Image

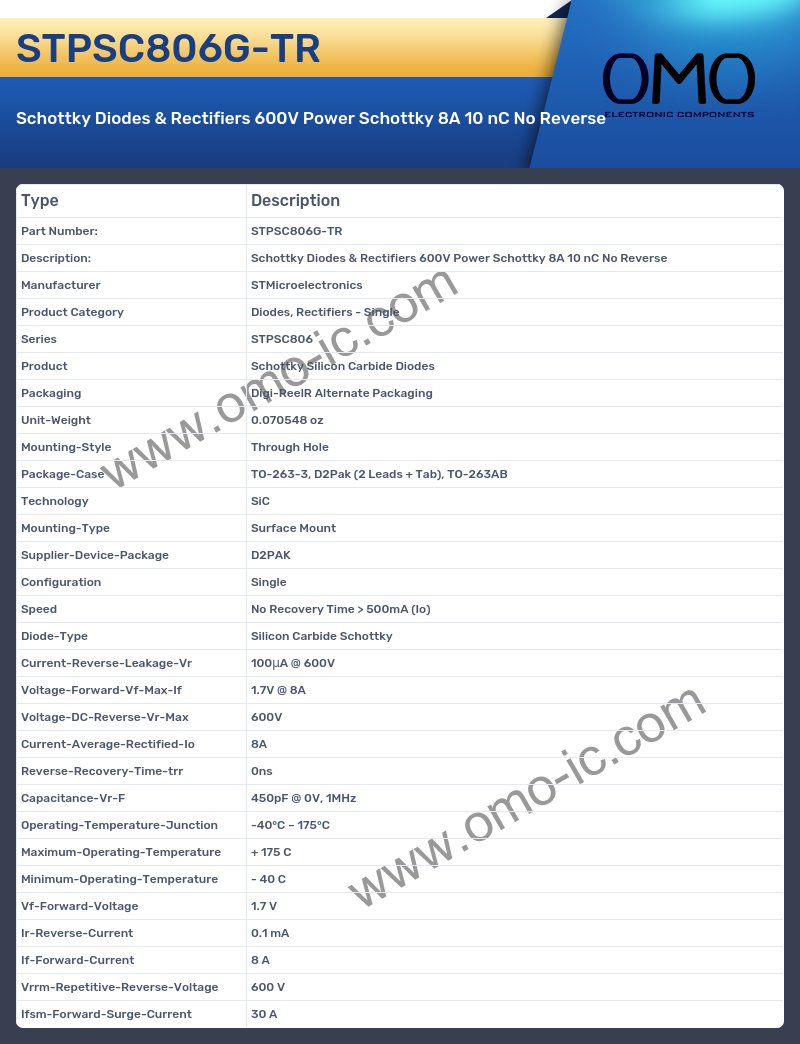

STPSC806G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPSC806
• Product Schottky Silicon Carbide Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style Through Hole
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology SiC
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed No Recovery Time > 500mA (Io)
• Diode-Type Silicon Carbide Schottky
• Current-Reverse-Leakage-Vr 100μA @ 600V
• Voltage-Forward-Vf-Max-If 1.7V @ 8A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr 0ns
• Capacitance-Vr-F 450pF @ 0V, 1MHz
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 1.7 V
• Ir-Reverse-Current 0.1 mA
• If-Forward-Current 8 A
• Vrrm-Repetitive-Reverse-Voltage 600 V
• Ifsm-Forward-Surge-Current 30 A
