| Mfr. #: | STS5N15F3 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IGBT Transistors MOSFET N-CH 150V STripFET 5A |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STS5N15F3 Datenblatt |
Product belongs to the STS5N15F3 series. Reel is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Quad Drain Triple Source Transistor type: 1 N-Channel Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 13 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 150 V. The 57 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 46 ns This product has a 9 ns. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

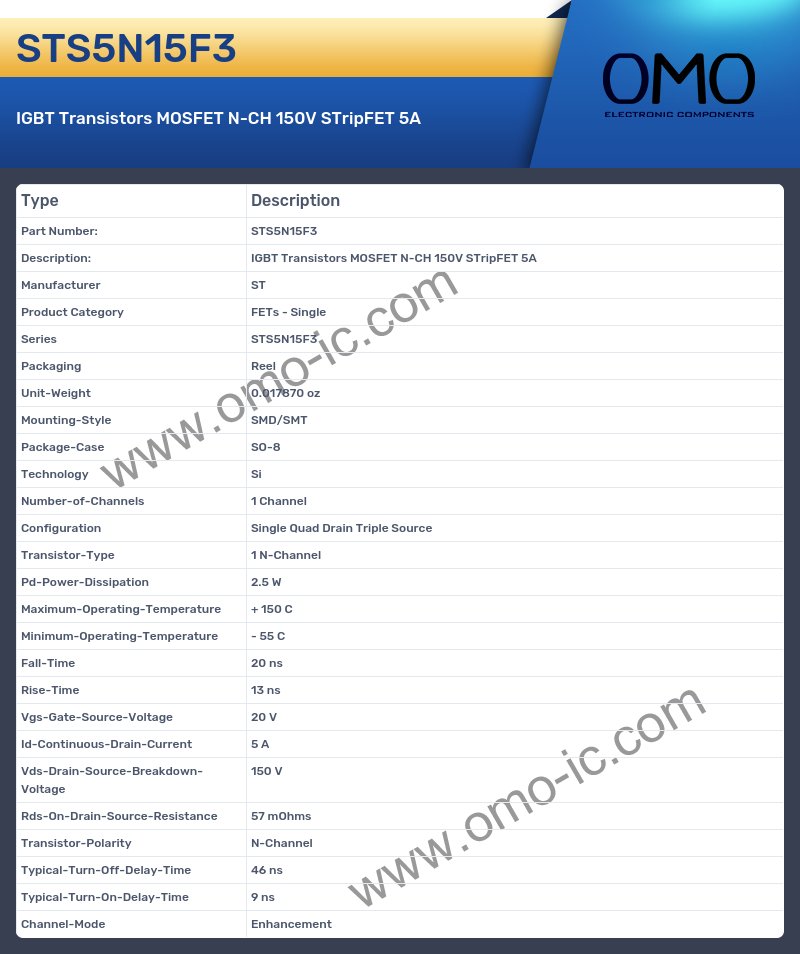

STS5N15F3 Specifications
