| Mfr. #: | STS5PF30L |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | MOSFET P-CH 30V 5A 8-SOIC |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STS5PF30L Datenblatt |
Product belongs to the STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002998 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: 8-SO Configuration Single Quad Drain Triple Source This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 30V This product has an 1350pF @ 25V value of 300pF @ 25V. This product's Standard. 5A (Tc) continuous drain-ID current at 25°C; This product has an 55 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 30 V. The 80 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 125 ns This product has a 25 ns. This product features a 13 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

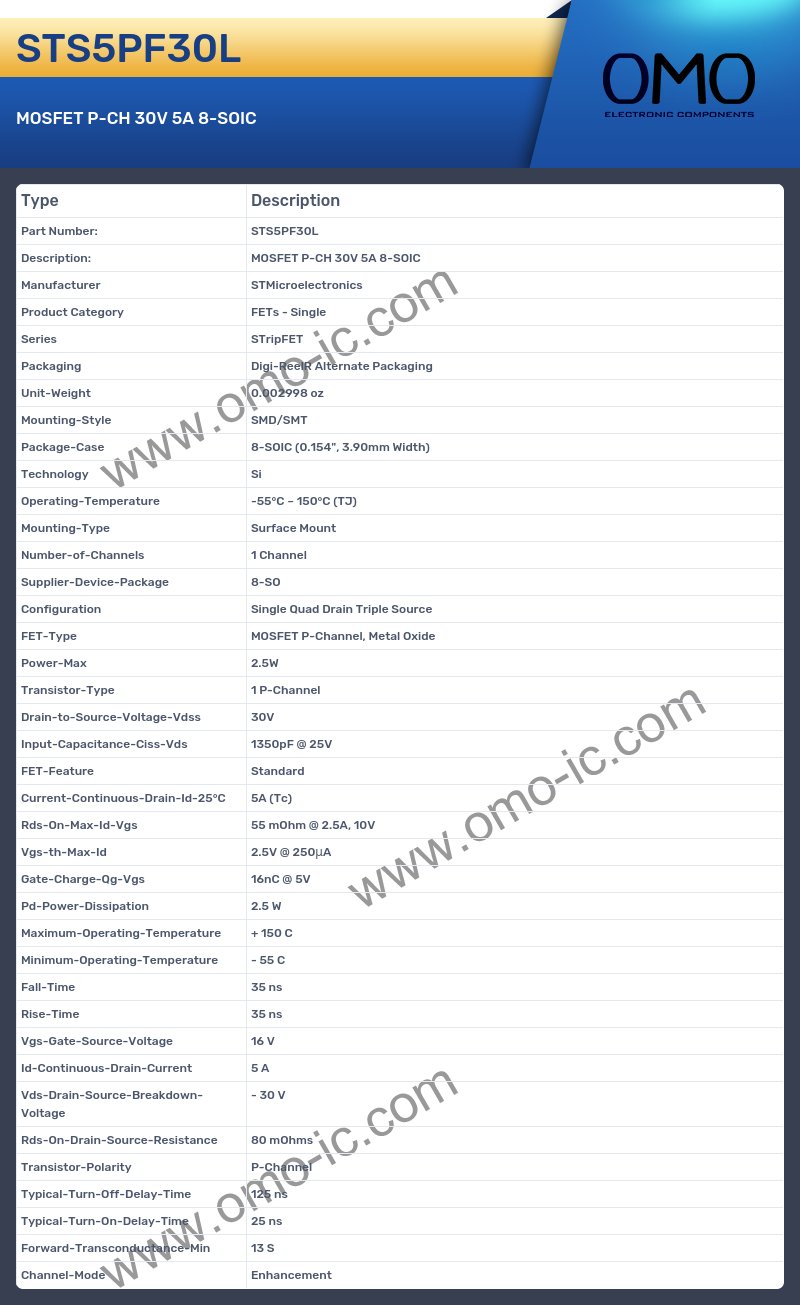

STS5PF30L Specifications
A: At what frequency does the Series?
Q: The product Series is STripFET.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.002998 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is 8-SOIC (0.154", 3.90mm Width).
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -55°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SO
A: At what frequency does the Configuration?
Q: The product Configuration is Single Quad Drain Triple Source.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET P-Channel, Metal Oxide.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 P-Channel
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 30V
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 1350pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Standard.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 5A (Tc)
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 55 mOhm @ 2.5A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 2.5 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 35 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 35 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 16 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 5 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed - 30 V
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 80 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed P-Channel
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 125 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 25 ns
A: At what frequency does the Forward-Transconductance-Min?
Q: The product Forward-Transconductance-Min is 13 S.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
