STSA1805-AP

STSA1805-AP Overview

Product belongs to the STSA1805 series. Ammo Pack is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92 Configuration Single Power-off control: 1.1 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 200 mV The 150 V voltage rating is 40 V. 7 V rating of 5 V Max DC collector current: 5 A Gain-Bandwidth-Product: 150 MHz Minimum hfe for DC collector-base gain is 20. 400 of 605.

STSA1805-AP Image

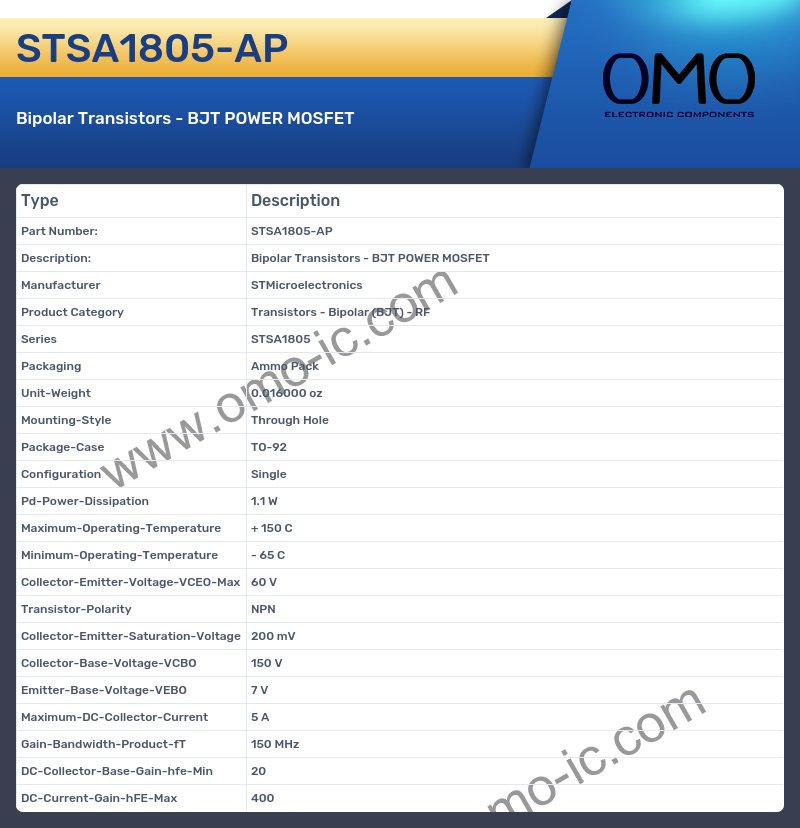

STSA1805-AP Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Bipolar (BJT) - RF
• Series STSA1805
• Packaging Ammo Pack
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92
• Configuration Single
• Pd-Power-Dissipation 1.1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 200 mV
• Collector-Base-Voltage-VCBO 150 V
• Emitter-Base-Voltage-VEBO 7 V
• Maximum-DC-Collector-Current 5 A
• Gain-Bandwidth-Product-fT 150 MHz
• DC-Collector-Base-Gain-hfe-Min 20
• DC-Current-Gain-hFE-Max 400
