| Mfr. #: | STT818B |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Bipolar Transistors - BJT PNP Lo-Volt Hi-Gain |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | STT818B Datenblatt |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Surface Mount mounting type Supplier device package: SOT-23-6 Configuration Single Transistor type: PNP Maximum current collector Ic is 3A . Maximum collector-emitter breakdown voltage of 30V DC current gain minimum (hFE) of Ic/Vce at 100 @ 500mA, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 20mA, 2A Power-off control: 1200 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 30 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.21 V The - 30 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: 3 A This product is capable of handling a - 3 A continuous collector current. Minimum hfe for DC collector-base gain is 100.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

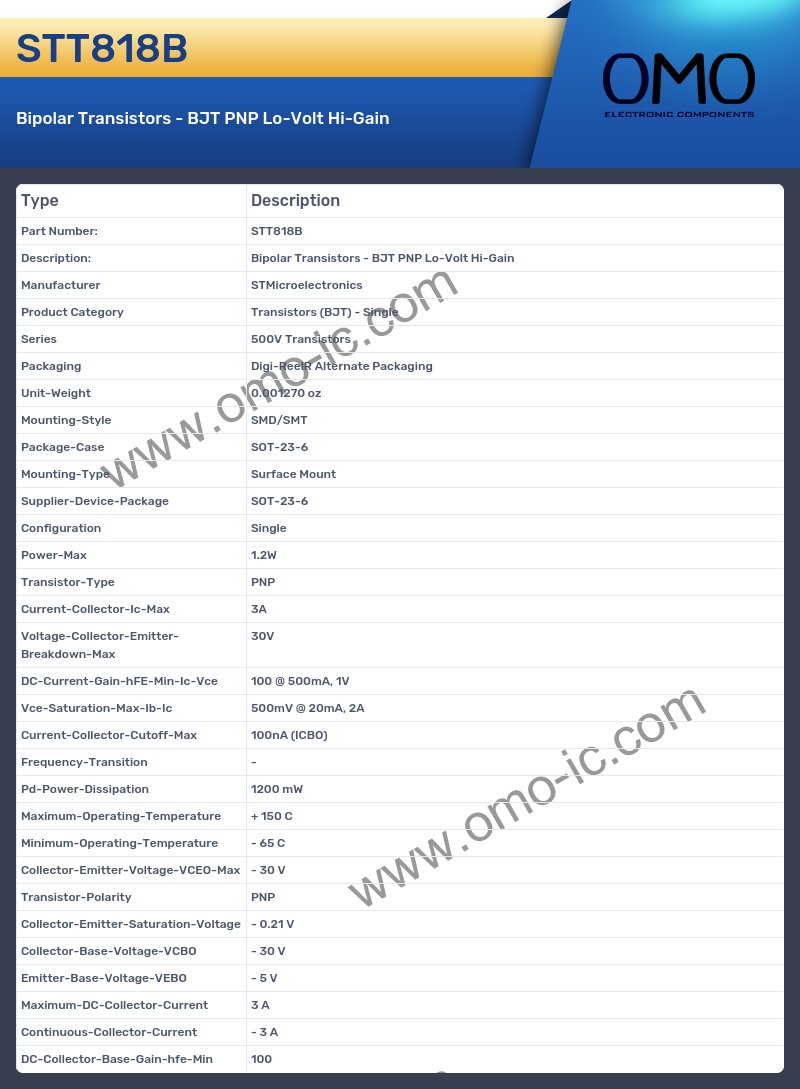

STT818B Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V Transistors
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.001270 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOT-23-6.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-23-6
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 3A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 30V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 100 @ 500mA, 1V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 500mV @ 20mA, 2A
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1200 mW
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is - 30 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed PNP
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is - 0.21 V.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is - 30 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed - 5 V
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 3 A.
A: At what frequency does the Continuous-Collector-Current?
Q: The product Continuous-Collector-Current is - 3 A.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 100
