T2550-12G Overview

Product belongs to the Snubberless series. Tube Alternate Packaging is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single 60mA of Current-Hold-Ih-Max The Voltage-Off-State is 1200V (1.2kV). Voltage-Gate-Trigger-Vgt-Max 1.3V 50mA of Current-Gate-Trigger-Igt-Max 25A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 240A, 252A for 50-60Hz Itsm. Alternistor - Snubberless Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 1200 V Rated Repetitive Off-State Voltage VDRM; 60 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 50 mA; 25 A RMS Current On-State 252 A Non-Repetitive On-State Current The 10 uA Off-State Leakage Current in VDRM and IDRM. The 1.55 V On-State-Voltage

T2550-12G Image

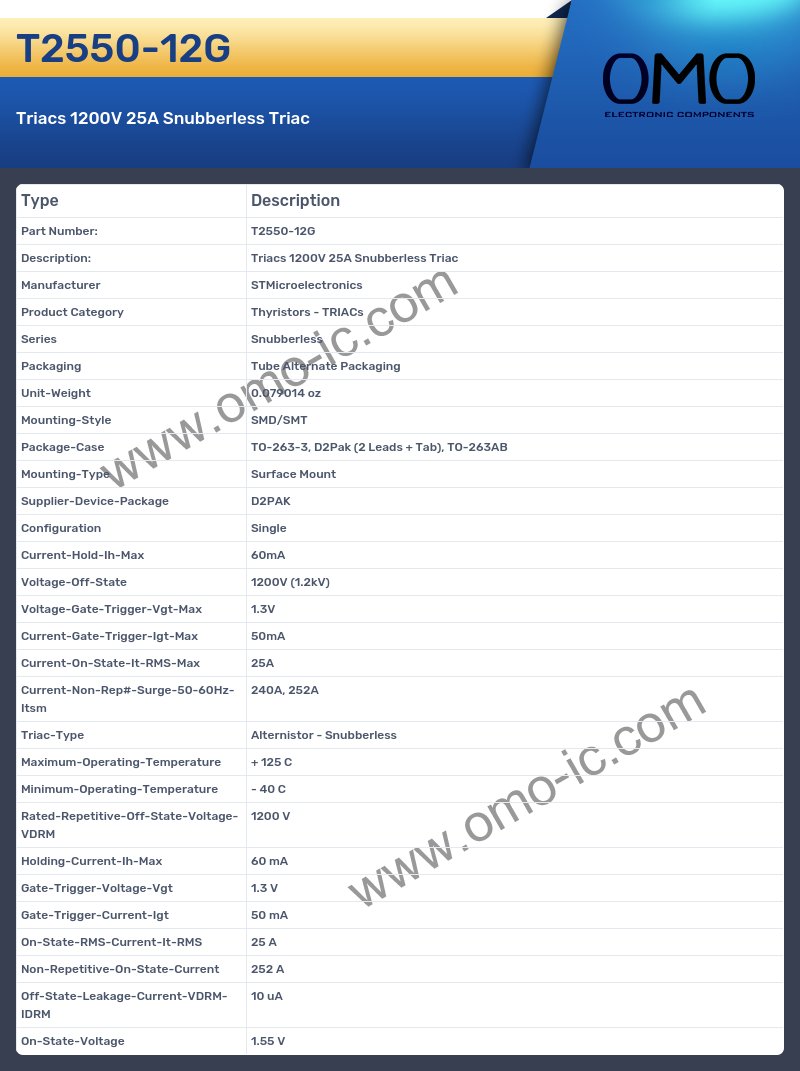

T2550-12G Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - TRIACs
• Series Snubberless
• Packaging Tube Alternate Packaging
• Unit-Weight 0.079014 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Current-Hold-Ih-Max 60mA
• Voltage-Off-State 1200V (1.2kV)
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 50mA
• Current-On-State-It-RMS-Max 25A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 240A, 252A
• Triac-Type Alternistor - Snubberless
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 1200 V
• Holding-Current-Ih-Max 60 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 50 mA
• On-State-RMS-Current-It-RMS 25 A
• Non-Repetitive-On-State-Current 252 A
• Off-State-Leakage-Current-VDRM-IDRM 10 uA
• On-State-Voltage 1.55 V
