TB5T1D

TB5T1D Overview

Product belongs to the TB5T1 series. Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.005235 oz SMD/SMT Mounting-Style SOIC-16 The PECL TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: PECL TTL Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC This product has a 2016/2/2 number of drivers and receivers. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 40 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 2 Driver The product has 2 Receiver receivers.

TB5T1D Image

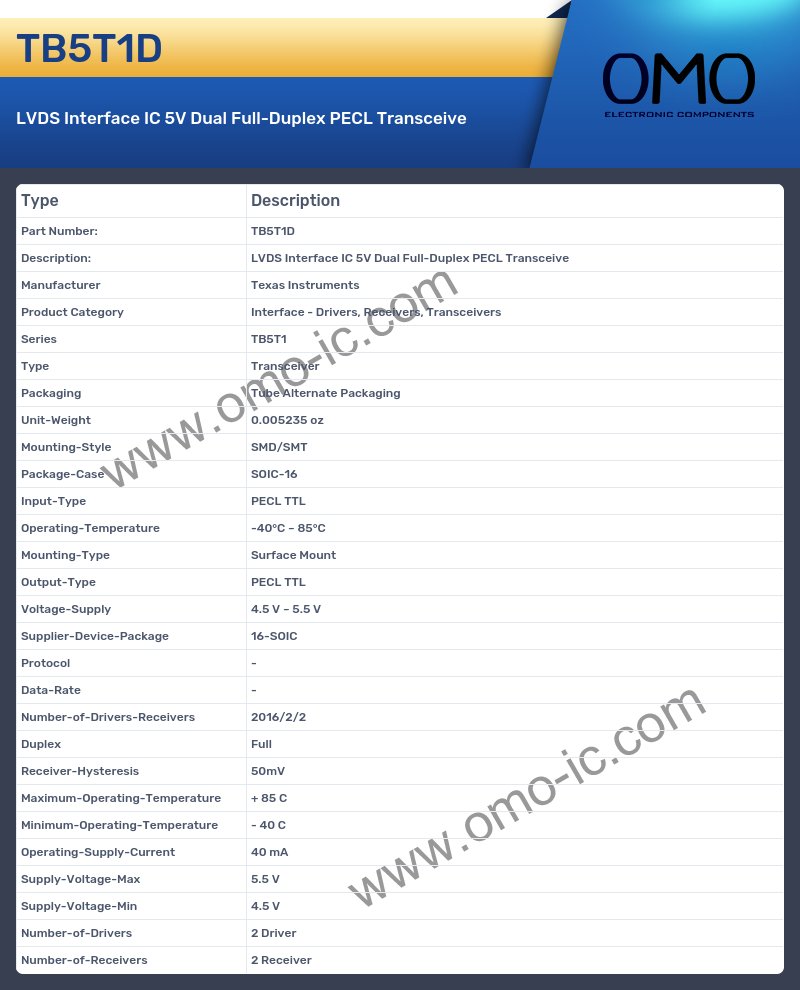

TB5T1D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series TB5T1
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005235 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type PECL TTL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type PECL TTL
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Protocol -
• Data-Rate -
• Number-of-Drivers-Receivers 2016/2/2
• Duplex Full
• Receiver-Hysteresis 50mV
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 40 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 2 Driver
• Number-of-Receivers 2 Receiver
