TC1303A-ZA0EUN

TC1303A-ZA0EUN Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style MSOP-10 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Adjustable Fixed Product function is Any Function. Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 10-MSOP Number-of-Outputs: 2 Topology: Step-Down (Buck) Synchronous (1), Linear (LDO) (1) feedback This product features 'Frequency-Switching' at 2MHz for optimal performance. The Adj, 500mA for this product is -, with a maximum current of 2.7A. This product's 3.3V, 300mA feature offers a maximum output of -, 1.8A. The - for this product is unspecified, but it can deliver up to 1.8A of current. No LED driver is present in the product. This product's No. Yes for w-Sequencer Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 800 mV to 4.5 V 3.3 V Maximum Input Voltage: 5.5 V Output current: 500 mA The product's 2.7 V is 5.1 V. Load regulation is 0.2 % - 0.08 %. The maximum 280 mV at 500 mA is 360 mV. This product's 0.2 %/V 0.02 %/V is 0.01 %/V. The product's 64 dB at 100 Hz is -20 dB.

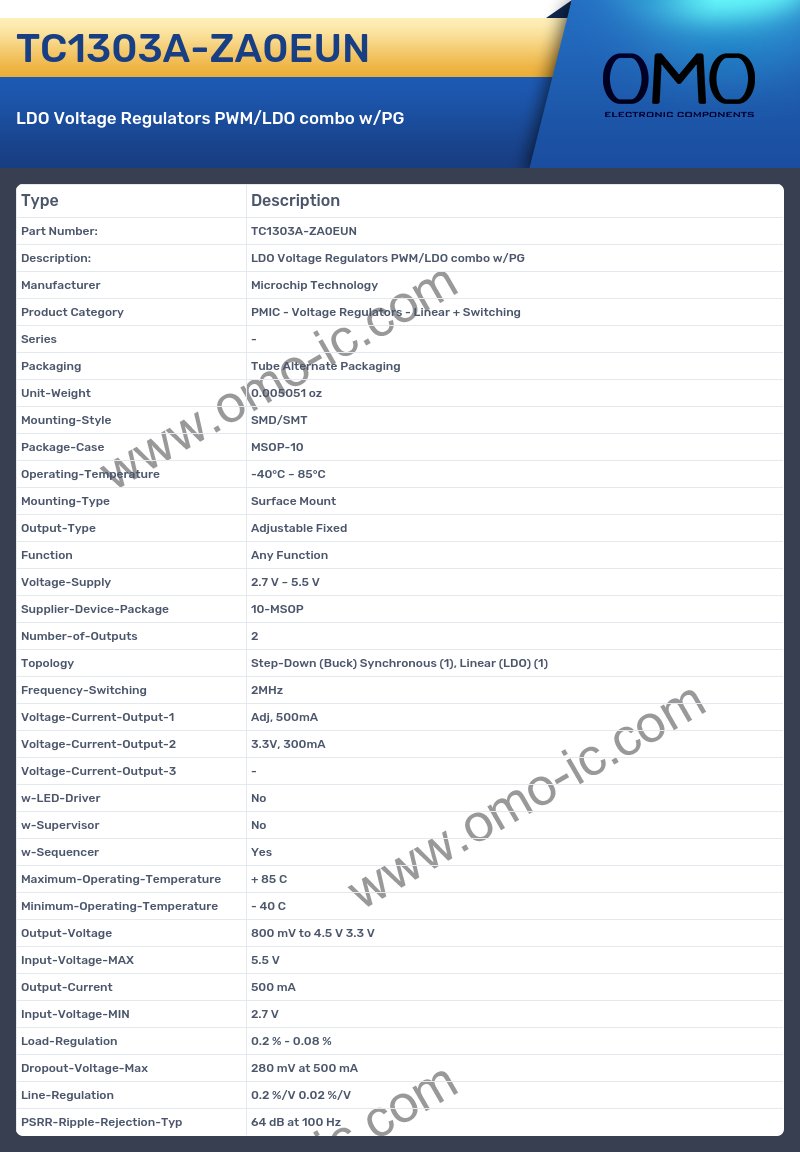

TC1303A-ZA0EUN Image

TC1303A-ZA0EUN Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear + Switching
• Series -
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-10
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Adjustable Fixed
• Function Any Function
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 10-MSOP
• Number-of-Outputs 2
• Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (1)
• Frequency-Switching 2MHz
• Voltage-Current-Output-1 Adj, 500mA
• Voltage-Current-Output-2 3.3V, 300mA
• Voltage-Current-Output-3 -
• w-LED-Driver No
• w-Supervisor No
• w-Sequencer Yes
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV to 4.5 V 3.3 V
• Input-Voltage-MAX 5.5 V
• Output-Current 500 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 0.2 % - 0.08 %
• Dropout-Voltage-Max 280 mV at 500 mA
• Line-Regulation 0.2 %/V 0.02 %/V
• PSRR-Ripple-Rejection-Typ 64 dB at 100 Hz
