TDA2005R

TDA2005R Overview

Product belongs to the TDA2005 series. This product is categorized as Audio Amplifiers Type: Class B Tube is the packaging method for this product Through Hole Mounting-Style MULTIWATT The Single for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Output-Type: 1-Channel (Mono) or 2-Channel (Stereo) Voltage Supply Range: 8 V ~ 18 V Supplier device package: 11-Multiwatt Maximum Output Power of 22W x 1 @ 3.2 Ohm; 12W x 2 @ 2 Ohm for 1 channel Class-B is the class of this product. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output current: 4.5 A Maximum supply voltage of 18 V Minimum supply voltage is 8 V This product has a 1 % for clear and precise audio. 4 Ohm audio load impedance Single supply type

TDA2005R Image

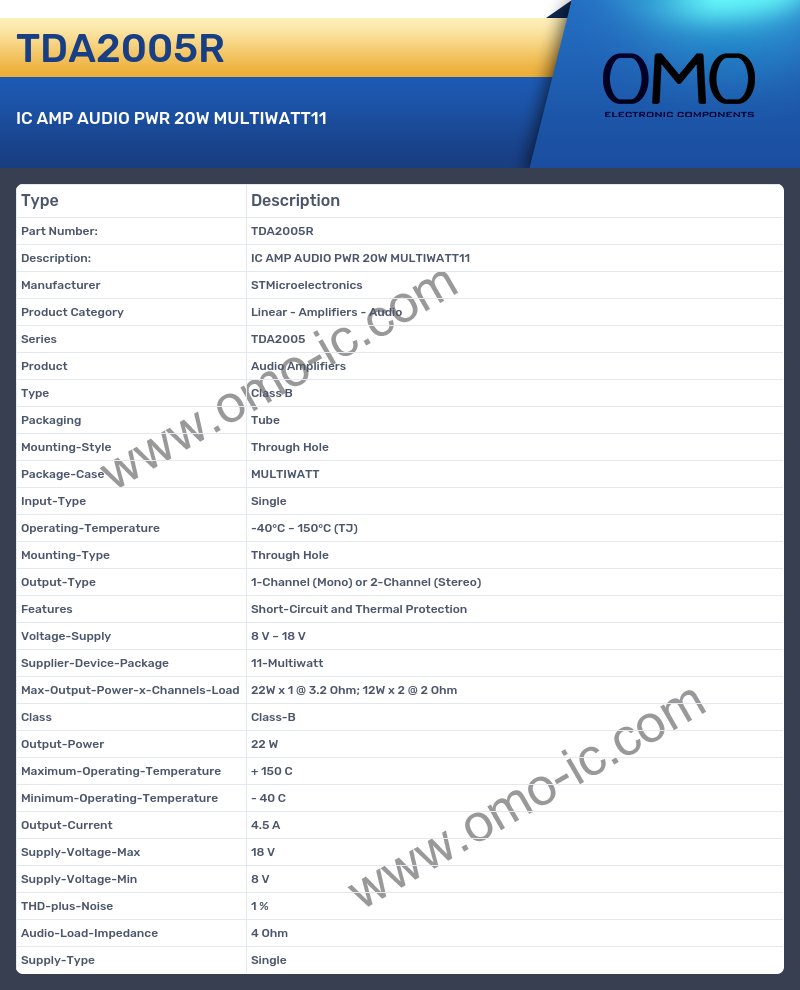

TDA2005R Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Amplifiers - Audio
• Series TDA2005
• Product Audio Amplifiers
• Type Class B
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case MULTIWATT
• Input-Type Single
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Output-Type 1-Channel (Mono) or 2-Channel (Stereo)
• Features Short-Circuit and Thermal Protection
• Voltage-Supply 8 V ~ 18 V
• Supplier-Device-Package 11-Multiwatt
• Max-Output-Power-x-Channels-Load 22W x 1 @ 3.2 Ohm; 12W x 2 @ 2 Ohm
• Class Class-B
• Output-Power 22 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 4.5 A
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 8 V
• THD-plus-Noise 1 %
• Audio-Load-Impedance 4 Ohm
• Supply-Type Single
