THS5661AIDWR

THS5661AIDWR Overview

Product belongs to the CommsDAC series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 28-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. The architecture of this product is Current Steering . External, Internal is the reference type. Number of D-A converters: 1 The 35μs (Typ) is an impressive 15 us. Yes Differential-Output

THS5661AIDWR Image

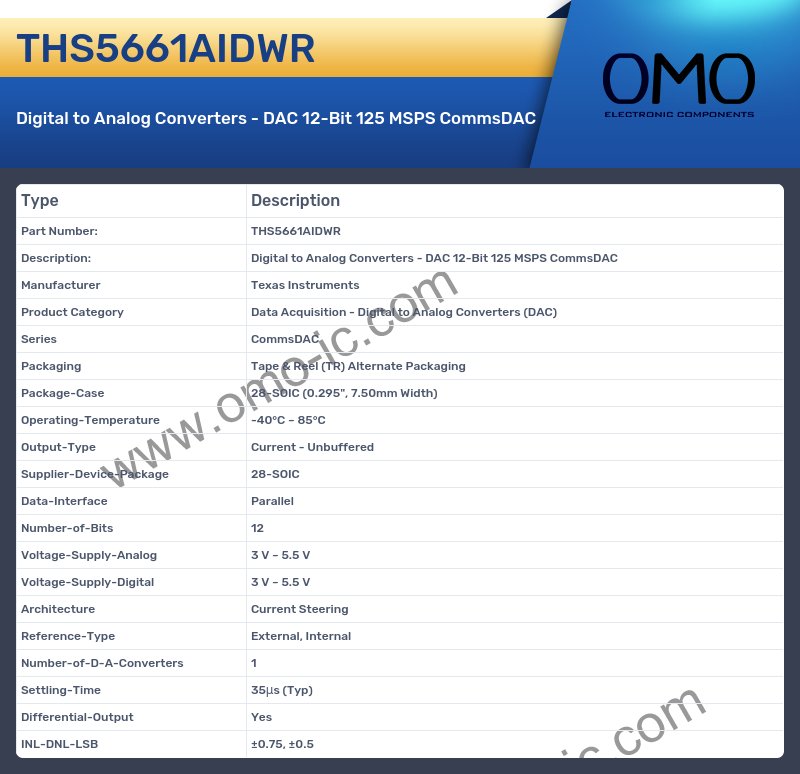

THS5661AIDWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series CommsDAC
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 28-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 28-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Architecture Current Steering
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 35μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.75, ±0.5
