| Mfr. #: | TIP102 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | TRANS NPN DARL 100V 8A TO220AB |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | TIP102 Datenblatt |
Product belongs to the Darlingtons series. Bulk Alternate Packaging is the packaging method for this product The TIP102_NL is listed as a Part-Aliase. Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220-3 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A Minimum hfe for DC collector-base gain is 200. 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

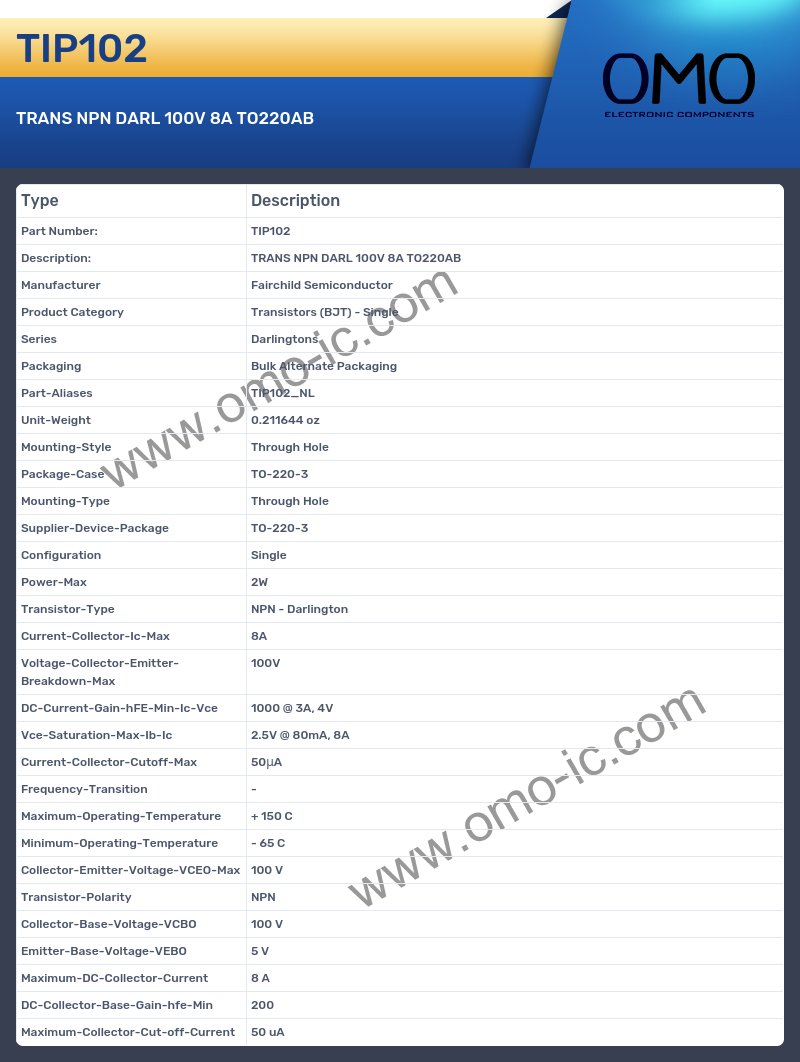

TIP102 Specifications
A: At what frequency does the Series?
Q: The product Series is Darlingtons.
A: What is the Packaging of the product?
Q: The Packaging of the product is Bulk Alternate Packaging.
A: At what frequency does the Part-Aliases?
Q: The product Part-Aliases is TIP102_NL.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.211644 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220-3.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is NPN - Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 8A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 100V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 1000 @ 3A, 4V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 2.5V @ 80mA, 8A.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 100 V
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: Is the cutoff frequency of the product Collector-Base-Voltage-VCBO?
Q: Yes, the product's Collector-Base-Voltage-VCBO is indeed 100 V
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 8 A
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 200
A: At what frequency does the Maximum-Collector-Cut-off-Current?
Q: The product Maximum-Collector-Cut-off-Current is 50 uA.
