TIP36C

TIP36C Overview

Product belongs to the TIP36C series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 Through Hole mounting type Supplier device package: TO-247 Configuration Single Transistor type: PNP Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 15 @ 15A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 5A, 25A Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1.8 V The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 25 A Gain-Bandwidth-Product: 3 MHz This product is capable of handling a 25 A continuous collector current. Minimum hfe for DC collector-base gain is 25.

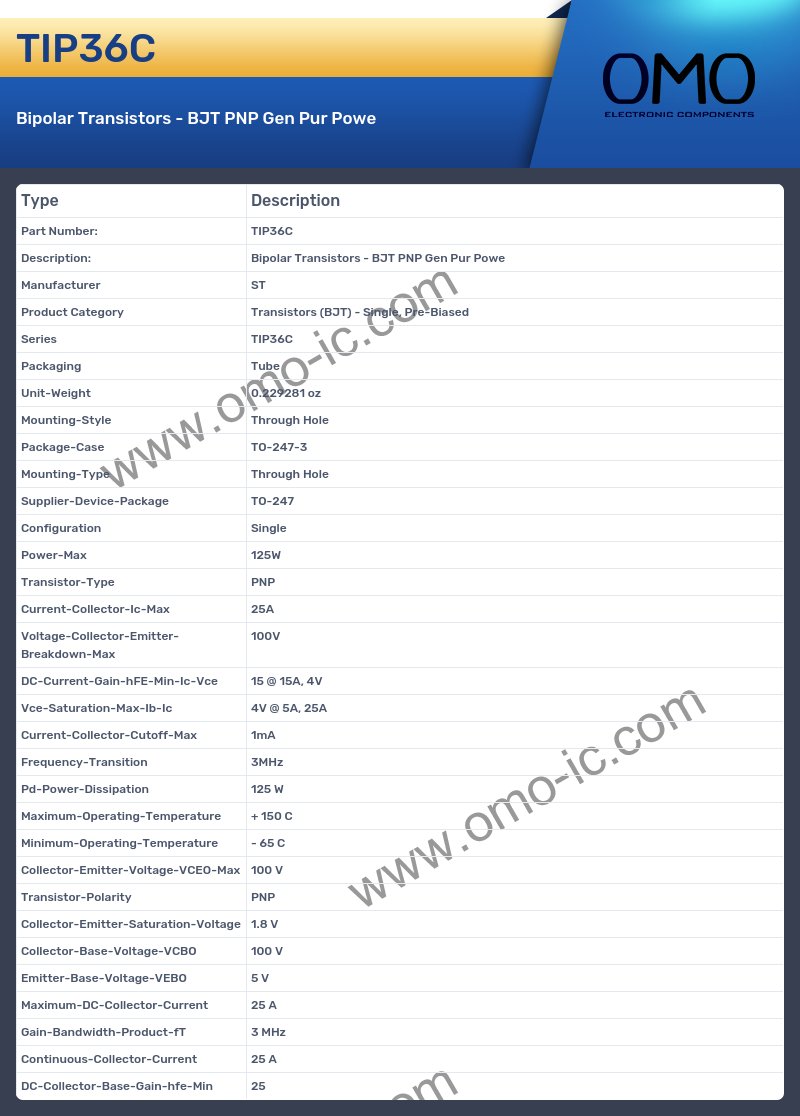

TIP36C Image

TIP36C Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single, Pre-Biased
• Series TIP36C
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Configuration Single
• Power-Max 125W
• Transistor-Type PNP
• Current-Collector-Ic-Max 25A
• Voltage-Collector-Emitter-Breakdown-Max 100V
• DC-Current-Gain-hFE-Min-Ic-Vce 15 @ 15A, 4V
• Vce-Saturation-Max-Ib-Ic 4V @ 5A, 25A
• Current-Collector-Cutoff-Max 1mA
• Frequency-Transition 3MHz
• Pd-Power-Dissipation 125 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 100 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage 1.8 V
• Collector-Base-Voltage-VCBO 100 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 25 A
• Gain-Bandwidth-Product-fT 3 MHz
• Continuous-Collector-Current 25 A
• DC-Collector-Base-Gain-hfe-Min 25
