TLC540IDW

TLC540IDW Overview

Product belongs to the TLC540 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 12 Channel Supplier device package: 20-SOIC This product's 75k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 12.5 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Serial SPI interface type Number-of-Converters: 1 Converter 75 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.5 V Digital Supply Voltage: 4.75 V to 5.5 V Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.5 LSB

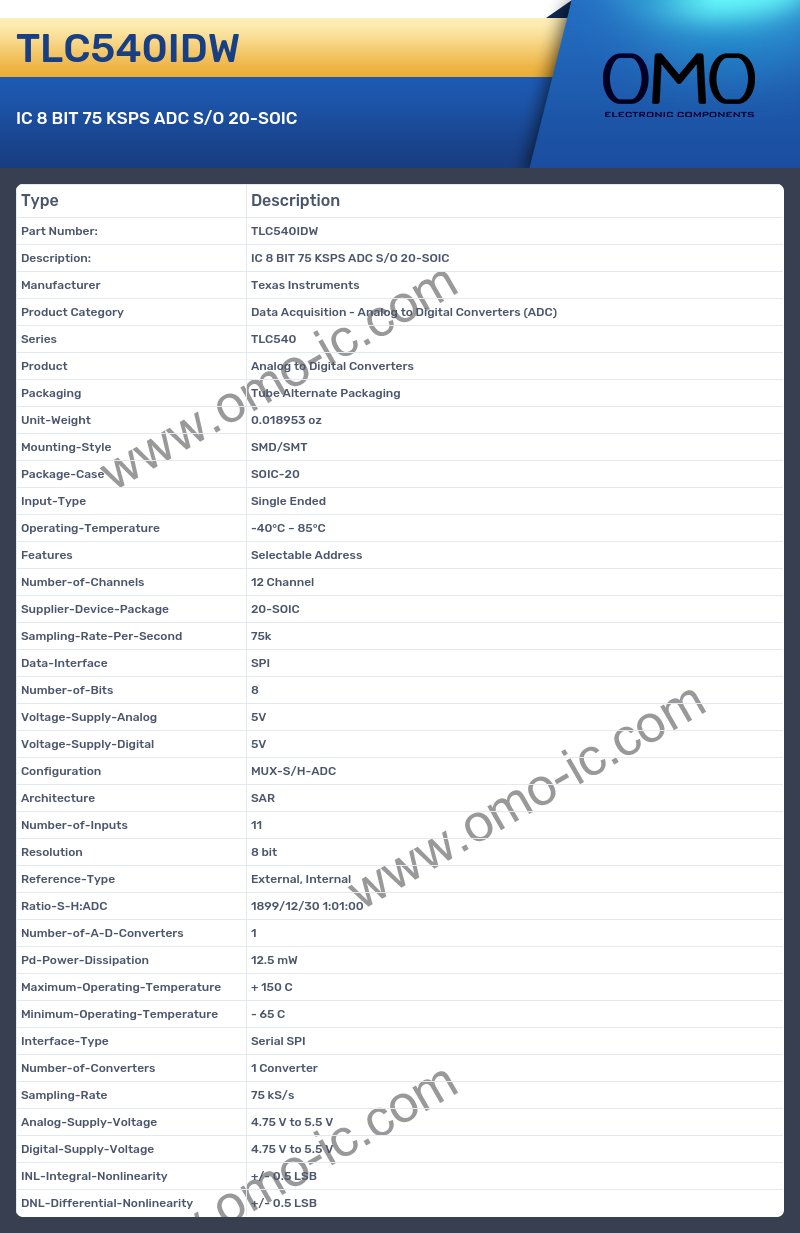

TLC540IDW Image

TLC540IDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC540
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Selectable Address
• Number-of-Channels 12 Channel
• Supplier-Device-Package 20-SOIC
• Sampling-Rate-Per-Second 75k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 11
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 12.5 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 75 kS/s
• Analog-Supply-Voltage 4.75 V to 5.5 V
• Digital-Supply-Voltage 4.75 V to 5.5 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
