TLV1544IDR

TLV1544IDR Overview

Product belongs to the TLV1544 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005471 oz SMD/SMT Mounting-Style SOIC-16 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 16-SOIC This product's 87k. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 799 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 4-Wire SPI interface type Number-of-Converters: 1 Converter 85 kS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

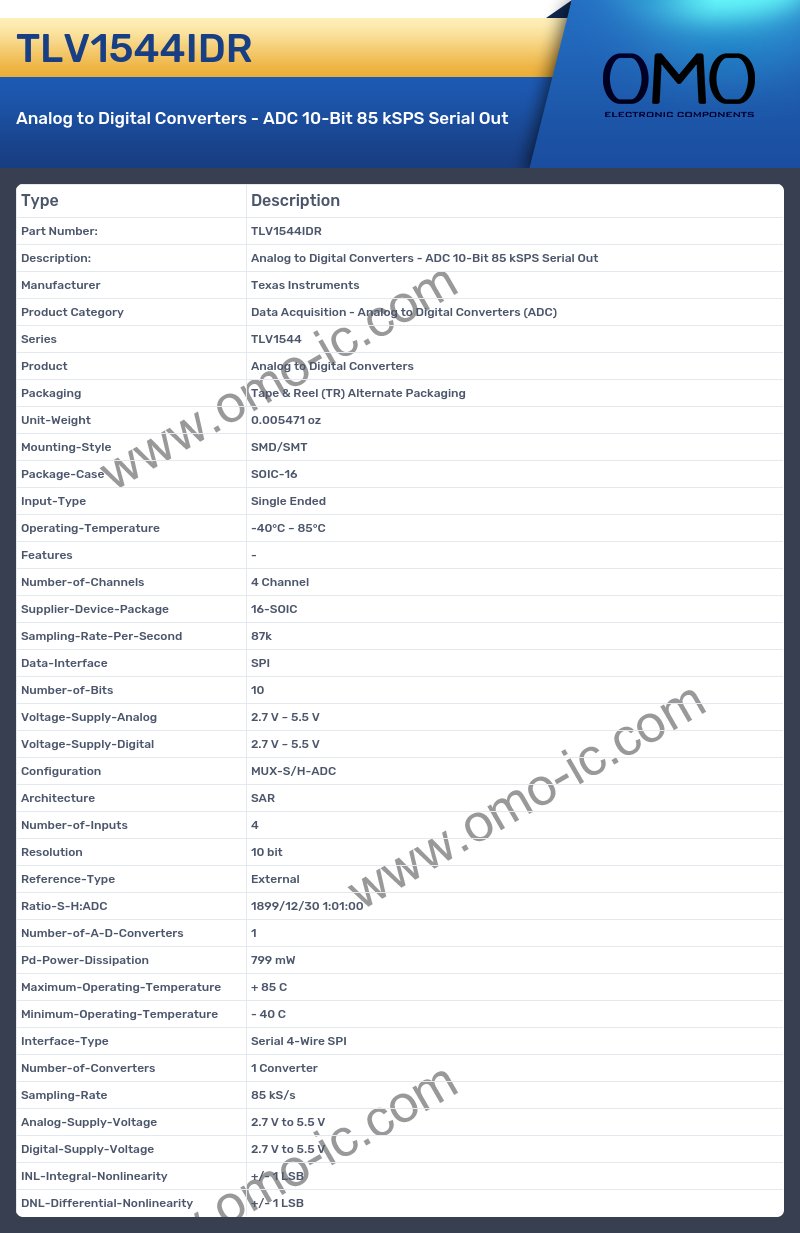

TLV1544IDR Image

TLV1544IDR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV1544
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005471 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 87k
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 799 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 4-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 85 kS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
