TLV1572CD

TLV1572CD Overview

Product belongs to the TLV1572 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 8-SOIC This product's 1.25M. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial 3-Wire 4-Wire SPI interface type Signal-to-Noise Ratio of 59 dB Number-of-Converters: 1 Converter 1.25 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

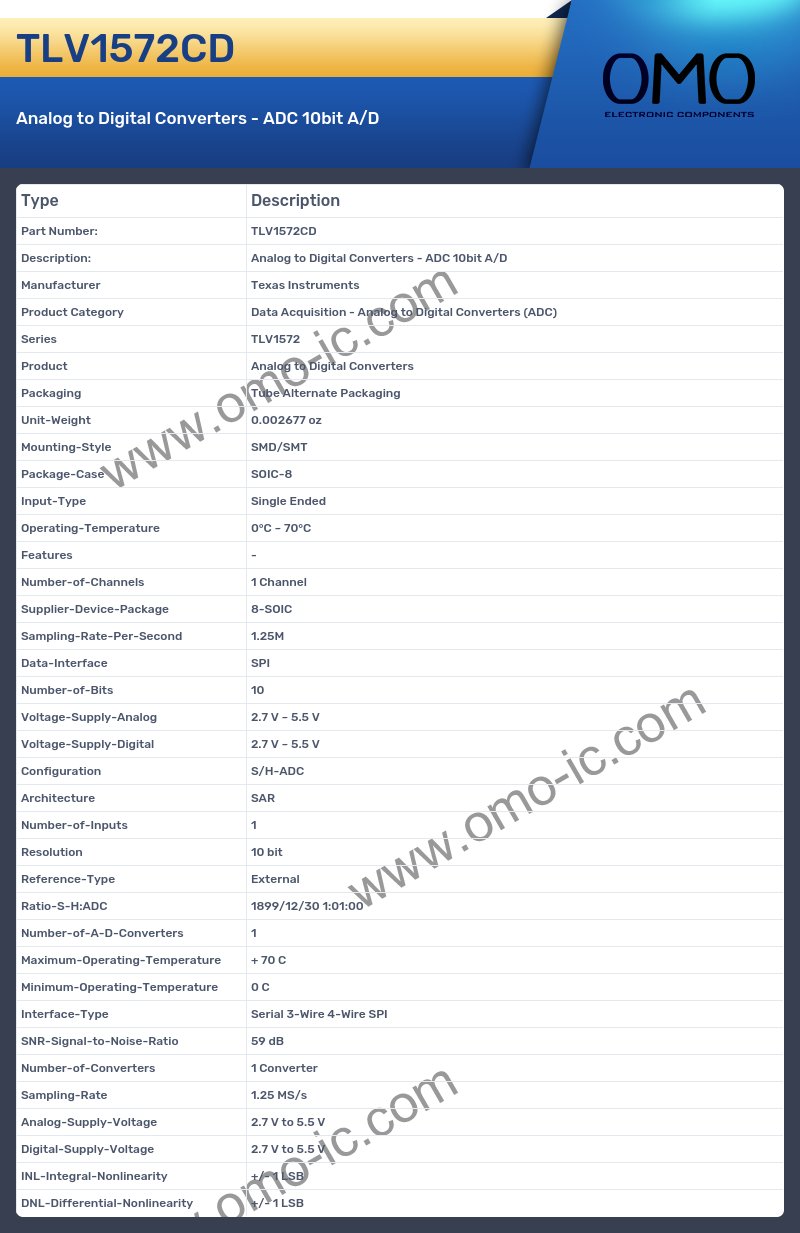

TLV1572CD Image

TLV1572CD Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV1572
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Sampling-Rate-Per-Second 1.25M
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial 3-Wire 4-Wire SPI
• SNR-Signal-to-Noise-Ratio 59 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1.25 MS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
