TLV2543IDBR

TLV2543IDBR Overview

Product belongs to the TLV2543 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 11 Channel Supplier device package: 20-SSOP This product's 66k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Number-of-Converters: 1 Converter 66 kS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

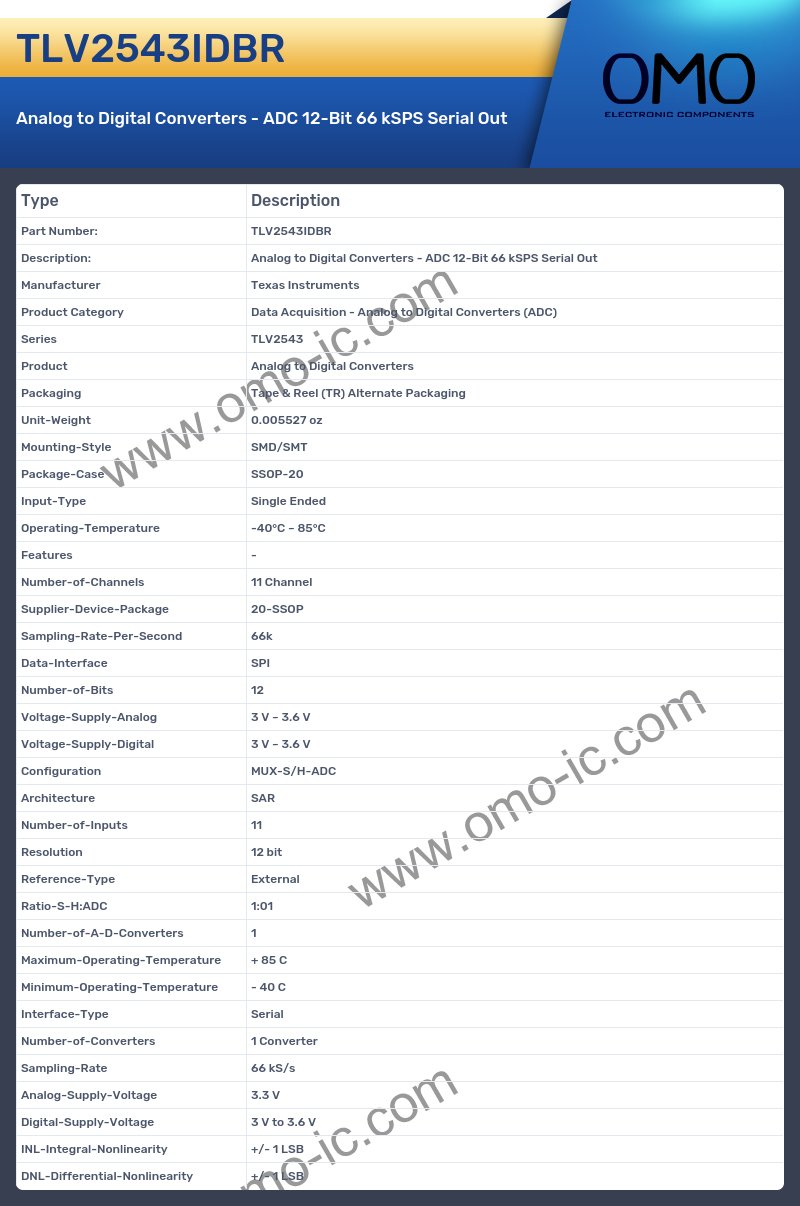

TLV2543IDBR Image

TLV2543IDBR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV2543
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 11 Channel
• Supplier-Device-Package 20-SSOP
• Sampling-Rate-Per-Second 66k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 11
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Number-of-Converters 1 Converter
• Sampling-Rate 66 kS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
