TN1205T-600B

TN1205T-600B Overview

Product belongs to the TN1205T-600 series. Tube is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: D-Pak 15mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 5mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 8A Current-On-State-It-AV-Max 12A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 115A, 120A for 50-60Hz Itsm. SCR-Type: Standard Recovery;

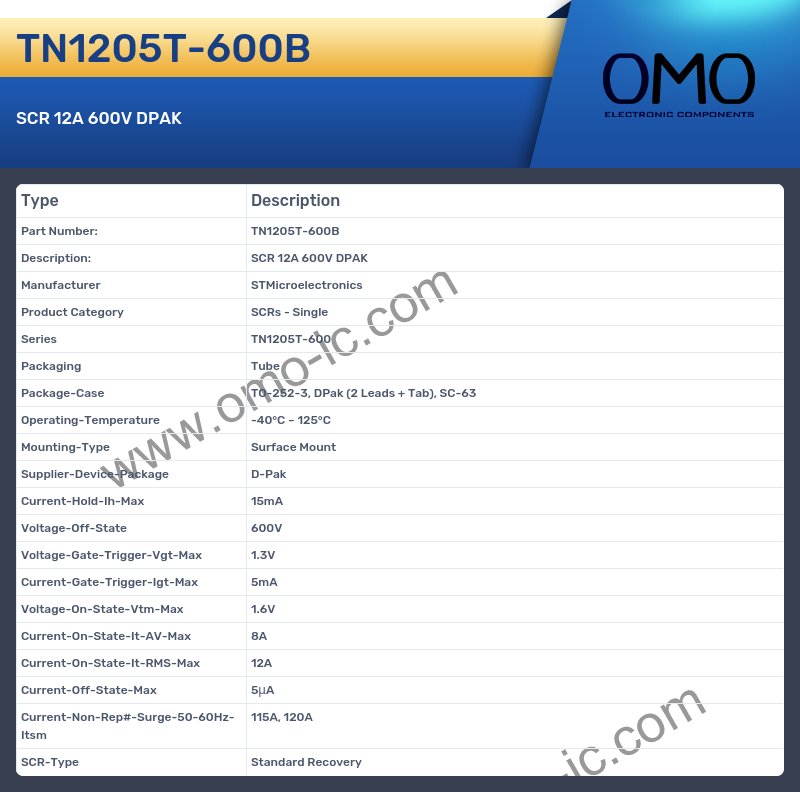

TN1205T-600B Image

TN1205T-600B Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TN1205T-600
• Packaging Tube
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Current-Hold-Ih-Max 15mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 5mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 8A
• Current-On-State-It-RMS-Max 12A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 115A, 120A
• SCR-Type Standard Recovery
