TPS2413DR

TPS2413DR Overview

Product belongs to the TPS2413 series. This product is categorized as Controllers & Switches Type: N+1 ORing Controller Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile N+1 Power Supplies, High Availability applications for maximum usability Number of channels: 1 Channel Voltage Supply Range: 3 V ~ 16.5 V Supplier device package: 8-SOIC The Ratio-Input:Output for this product is . This product has a 4.25mA of 200μA. This product has No. Our product delivers a - of 50mA for efficient power management. This product uses an N-Channel FET-Type transistor. The - is 400ns. The 130ns of this product is 300ns. Power-off control: 410 mW 4.25 mA (Typ) is 92 nA. The TPS2413EVM. Maximum supply voltage of 16.5 V Minimum supply voltage is 800 mV This product requires a minimum 800 mV of 2.95 V. This product has a maximum 16.5 V of 20 V.

TPS2413DR Image

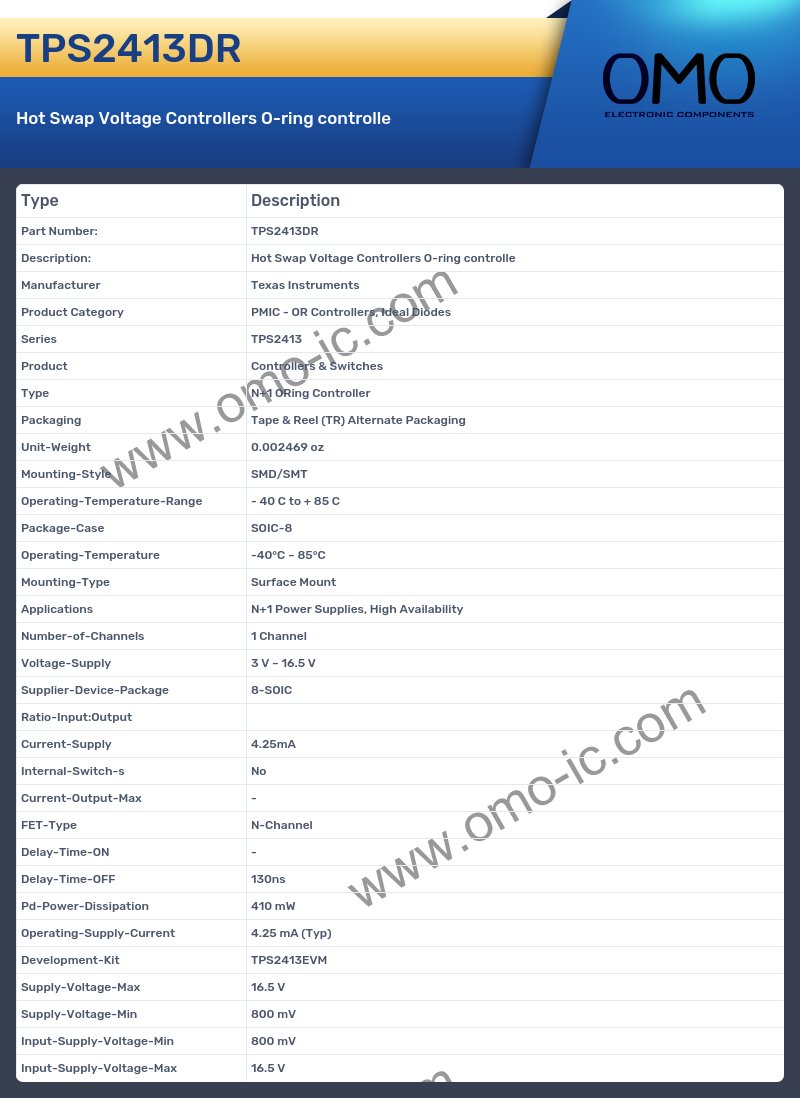

TPS2413DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - OR Controllers, Ideal Diodes
• Series TPS2413
• Product Controllers & Switches
• Type N+1 ORing Controller
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Applications N+1 Power Supplies, High Availability
• Number-of-Channels 1 Channel
• Voltage-Supply 3 V ~ 16.5 V
• Supplier-Device-Package 8-SOIC
• Ratio-Input:Output
• Current-Supply 4.25mA
• Internal-Switch-s No
• Current-Output-Max -
• FET-Type N-Channel
• Delay-Time-ON -
• Delay-Time-OFF 130ns
• Pd-Power-Dissipation 410 mW
• Operating-Supply-Current 4.25 mA (Typ)
• Development-Kit TPS2413EVM
• Supply-Voltage-Max 16.5 V
• Supply-Voltage-Min 800 mV
• Input-Supply-Voltage-Min 800 mV
• Input-Supply-Voltage-Max 16.5 V
