TPS50301SHKH

TPS50301SHKH Overview

Product belongs to the SWIFT series. Type: Step Down Converter Tube is the packaging method for this product SMD/SMT Mounting-Style Wide - 55 C to + 210 C operating temperature range for diverse applications CFP-20 Operational temperature range: -55°C ~ 220°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 20-CFP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.795V . The value of Yes is included as a product attribute. The minimum input voltage is 3V. The 6.3V. Maximum operating temperature of + 210 C Minimum operating temperature: - 55 C Output voltage: 0.785 V to 5.5 V Input Voltage Range: 1.6 V to 6.3 V Maximum Input Voltage: 6.3 V Output current: 3 A Switching frequency is 1 MHz The product's 1.6 V is 5.1 V. The TPS50301HTEVM. Minimum supply voltage is 1.6 V

TPS50301SHKH Image

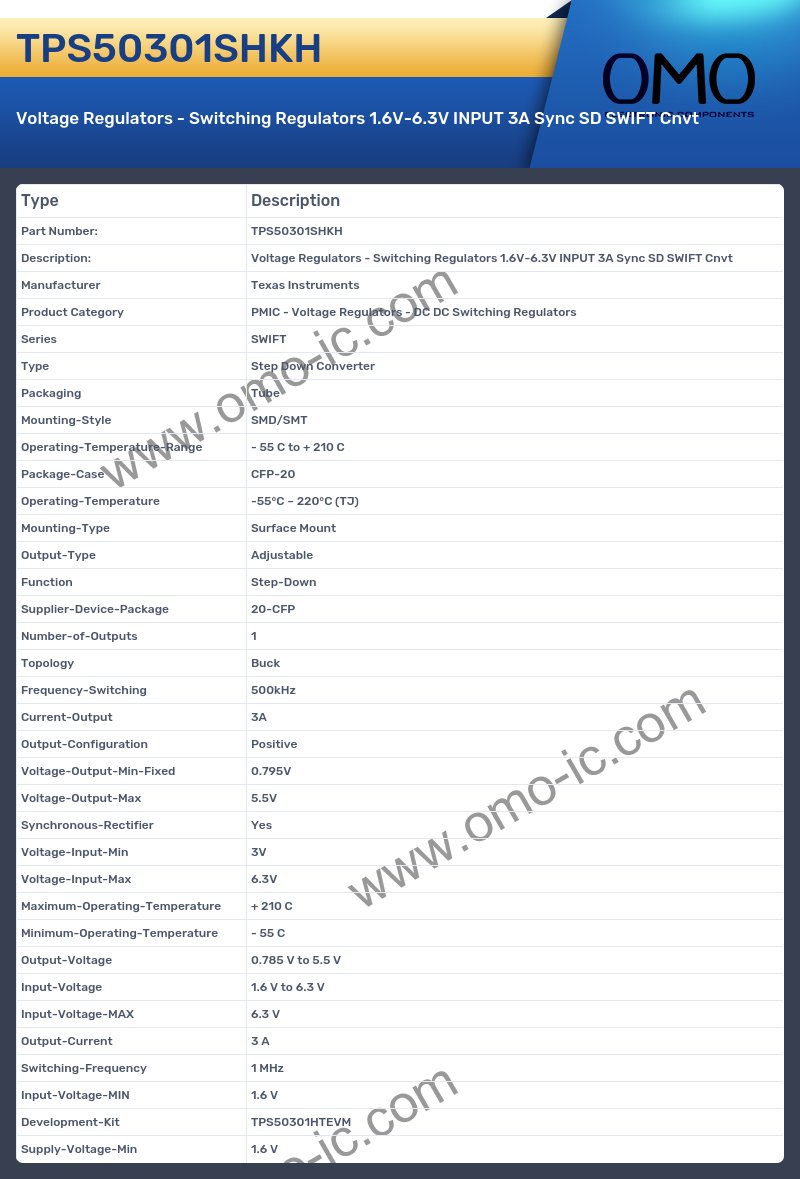

TPS50301SHKH Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT
• Type Step Down Converter
• Packaging Tube
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 210 C
• Package-Case CFP-20
• Operating-Temperature -55°C ~ 220°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 20-CFP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.795V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 3V
• Voltage-Input-Max 6.3V
• Maximum-Operating-Temperature + 210 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 0.785 V to 5.5 V
• Input-Voltage 1.6 V to 6.3 V
• Input-Voltage-MAX 6.3 V
• Output-Current 3 A
• Switching-Frequency 1 MHz
• Input-Voltage-MIN 1.6 V
• Development-Kit TPS50301HTEVM
• Supply-Voltage-Min 1.6 V
