TPS5100IPW

TPS5100IPW Overview

Product belongs to the TPS5100 series. Tube is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-TSSOP Number-of-Outputs: 3 Topology: Boost, Buck-Boost feedback Supply Voltage: 2.5 V ~ 7 V This product features 'Frequency-Switching' at 50kHz ~ 1MHz for optimal performance. The Control-Features include Dead Time Control, Enable, Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 1 The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C

TPS5100IPW Image

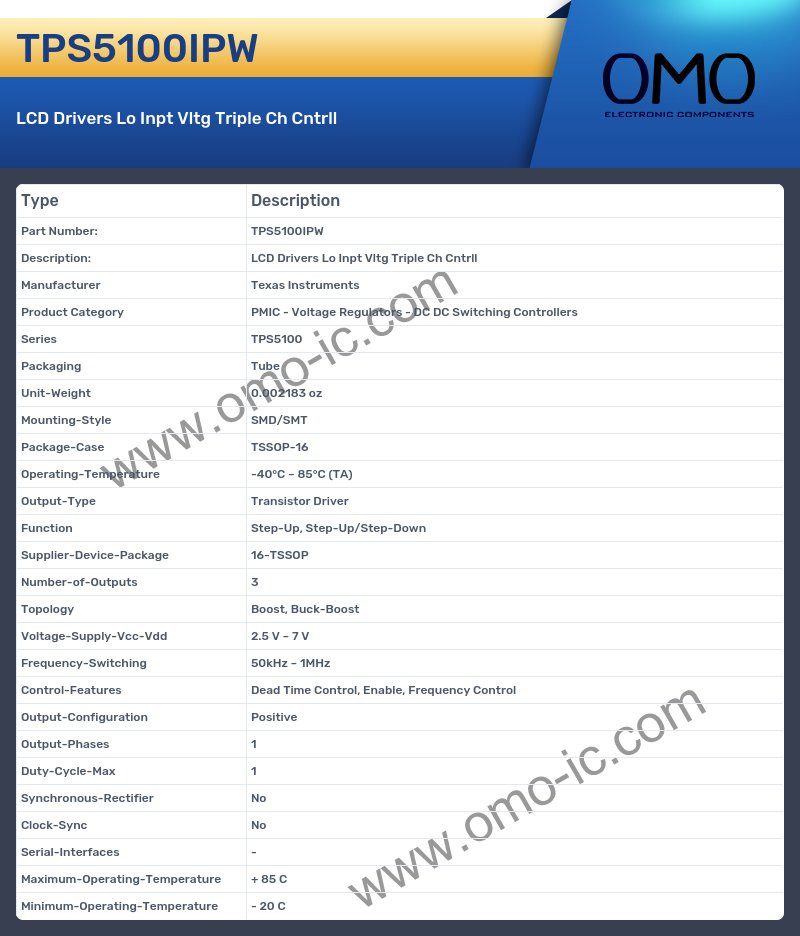

TPS5100IPW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS5100
• Packaging Tube
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-TSSOP
• Number-of-Outputs 3
• Topology Boost, Buck-Boost
• Voltage-Supply-Vcc-Vdd 2.5 V ~ 7 V
• Frequency-Switching 50kHz ~ 1MHz
• Control-Features Dead Time Control, Enable, Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 1
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 20 C
