TPS51315RGFR

TPS51315RGFR Overview

Product belongs to the D-CAP series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications VQFN-40 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 40-VQFN Exposed Pad (5x7) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 100kHz ~ 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.75V . The value of Yes is included as a product attribute. The minimum input voltage is 3V. The 14V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.75 V to 5.5 V Input Voltage Range: 3 V to 14 V Maximum Input Voltage: 14 V Output current: 10 A Switching frequency is 250 kHz The product's 3 V is 5.1 V.

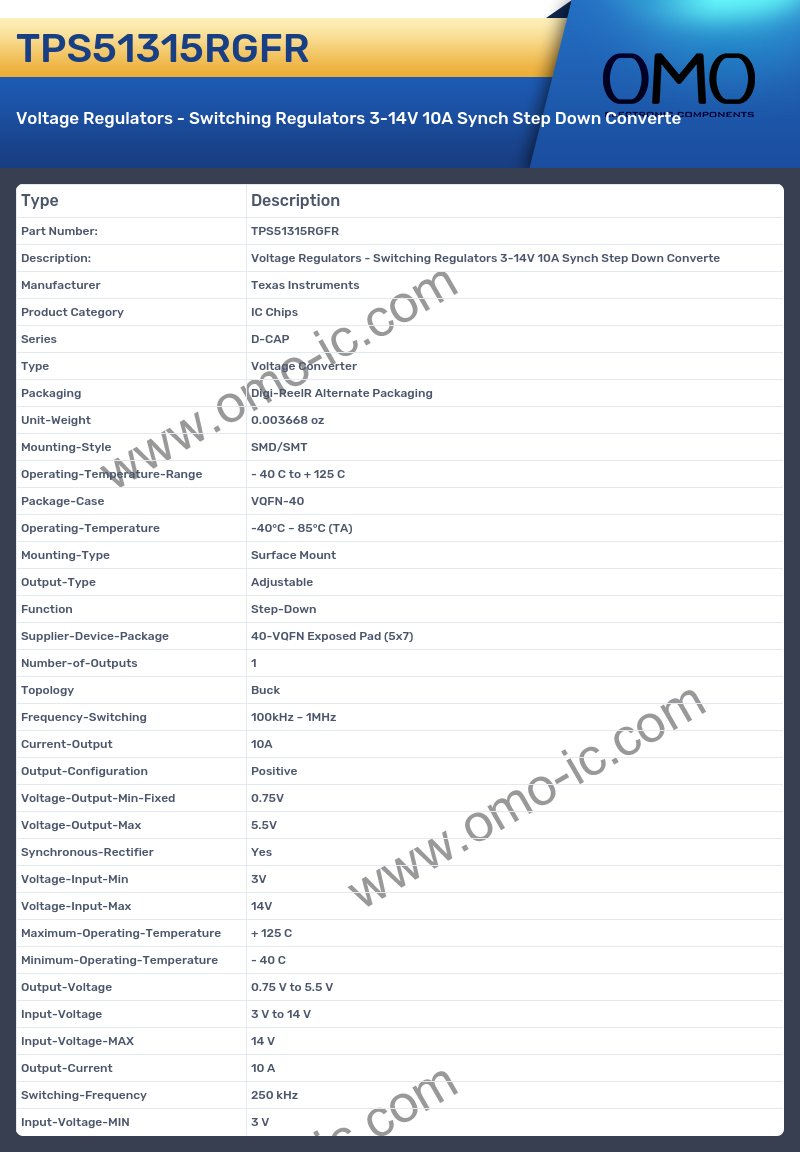

TPS51315RGFR Image

TPS51315RGFR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series D-CAP
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 40-VQFN Exposed Pad (5x7)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 100kHz ~ 1MHz
• Current-Output 10A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.75V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 3V
• Voltage-Input-Max 14V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.75 V to 5.5 V
• Input-Voltage 3 V to 14 V
• Input-Voltage-MAX 14 V
• Output-Current 10 A
• Switching-Frequency 250 kHz
• Input-Voltage-MIN 3 V
