TPS54020RUWT

TPS54020RUWT Overview

Product belongs to the SWIFT, Eco-Mode series. Type: Synchronous Step-Down Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications VQFN-15 Operational temperature range: -40°C ~ 150°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 15-VQFN (3.5x3.5) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 200kHz ~ 1.2MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 17V. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 0.6 V to 5 V Input Voltage Range: 4.5 V to 17 V Maximum Input Voltage: 17 V Output current: 10 A Switching frequency is 200 kHz to 1.2 MHz The product's 4.5 V is 5.1 V. The TPS54020EVM-082. Minimum supply voltage is 4.5 V

TPS54020RUWT Image

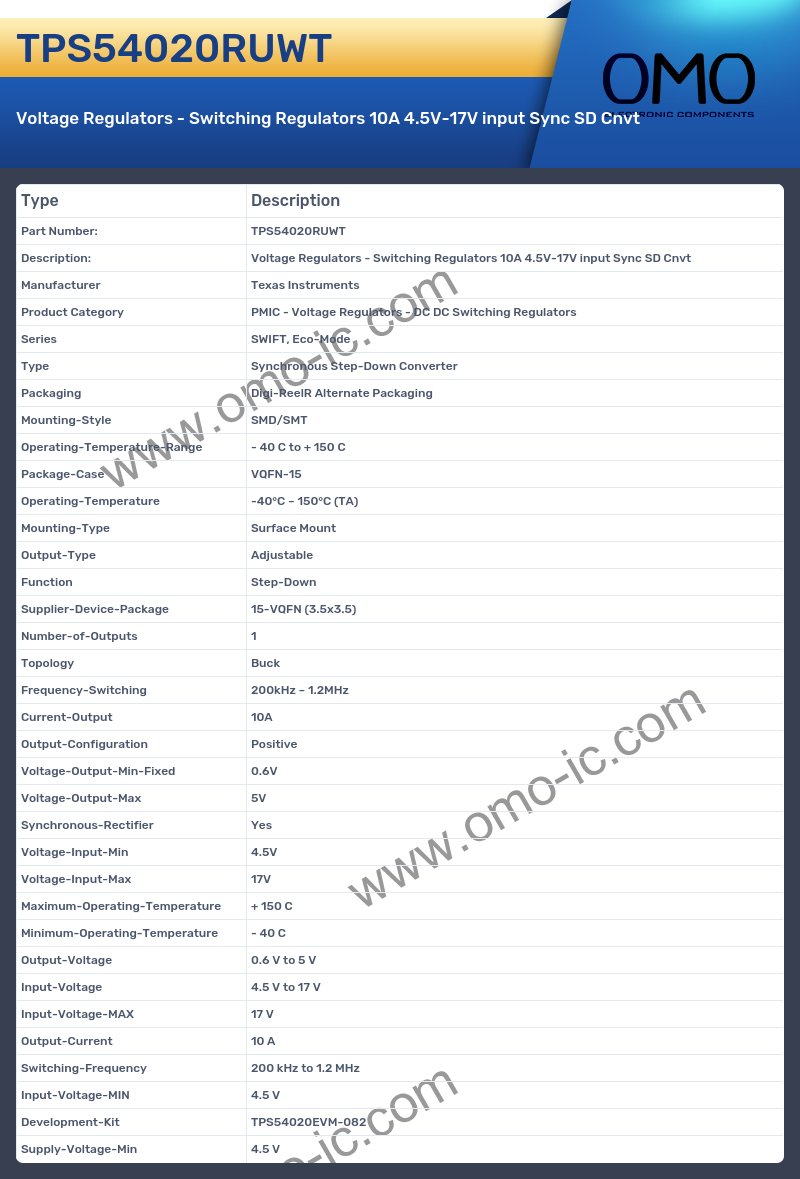

TPS54020RUWT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT, Eco-Mode
• Type Synchronous Step-Down Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case VQFN-15
• Operating-Temperature -40°C ~ 150°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 15-VQFN (3.5x3.5)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 200kHz ~ 1.2MHz
• Current-Output 10A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 17V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.6 V to 5 V
• Input-Voltage 4.5 V to 17 V
• Input-Voltage-MAX 17 V
• Output-Current 10 A
• Switching-Frequency 200 kHz to 1.2 MHz
• Input-Voltage-MIN 4.5 V
• Development-Kit TPS54020EVM-082
• Supply-Voltage-Min 4.5 V
