| Mfr. #: | TPS54560DDAR |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Voltage Regulators - Switching Regulators 60V Input 5 A SD DC-DC Cnvt |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | TPS54560DDAR Datenblatt |
Product belongs to the Eco-Mode series. Type: Step-Down Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications HSOP-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO PowerPad Number-of-Outputs: 1 Topology: Buck, Split Rail feedback This product features 'Frequency-Switching' at 100kHz ~ 2.5MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 60V. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 58.8 V Input Voltage Range: 4.5 V to 60 V Maximum Input Voltage: 60 V Output current: 5 A Switching frequency is 100 kHz to 2.5 MHz The product's 4.5 V is 5.1 V. The TPS54560EVM-515. Minimum supply voltage is 4.5 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

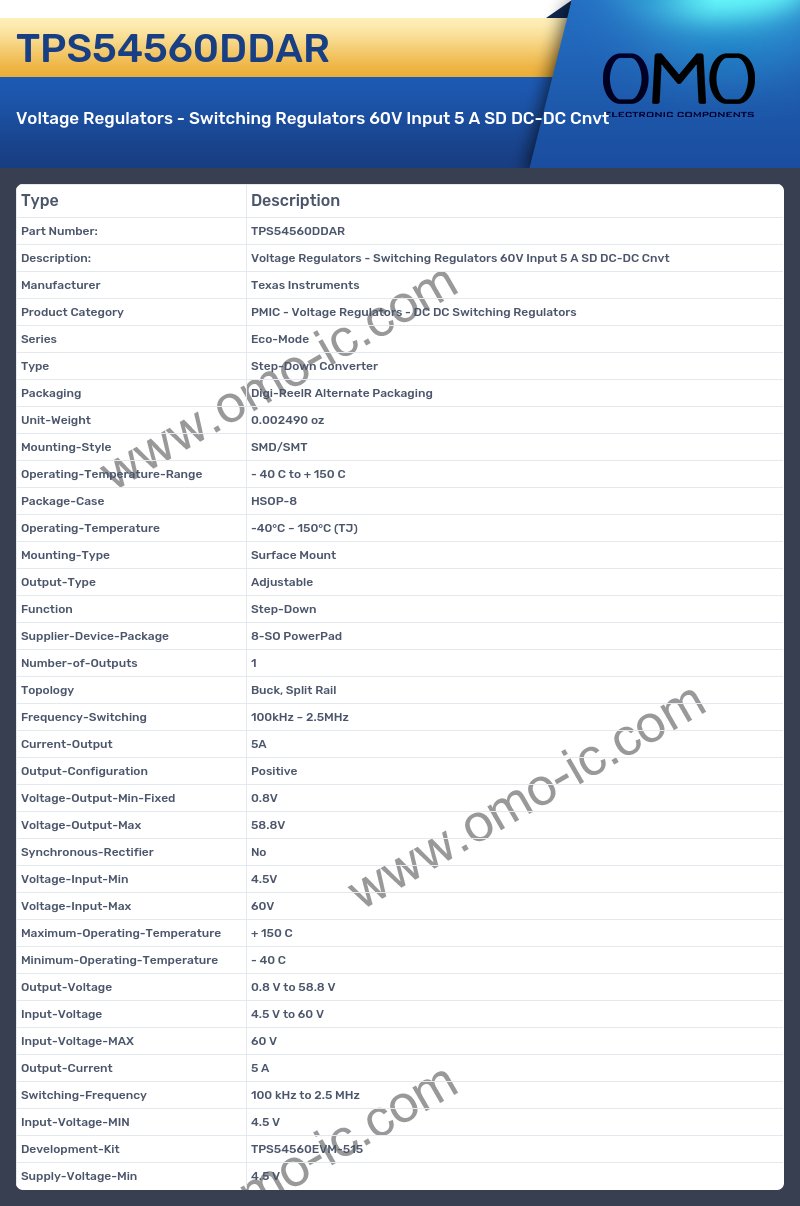

TPS54560DDAR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed Eco-Mode
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Step-Down Converter
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002490 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Operating-Temperature-Range?
Q: Yes, the product's Operating-Temperature-Range is indeed - 40 C to + 150 C
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed HSOP-8
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 150°C (TJ)
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is Adjustable.
A: At what frequency does the Function?
Q: The product Function is Step-Down.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SO PowerPad.
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 1
A: What is the Topology of the product?
Q: The Topology of the product is Buck, Split Rail.
A: Is the cutoff frequency of the product Frequency-Switching?
Q: Yes, the product's Frequency-Switching is indeed 100kHz ~ 2.5MHz
A: At what frequency does the Output-Configuration?
Q: The product Output-Configuration is Positive.
A: At what frequency does the Voltage-Output-Min-Fixed?
Q: The product Voltage-Output-Min-Fixed is 0.8V.
A: Is the cutoff frequency of the product Synchronous-Rectifier?
Q: Yes, the product's Synchronous-Rectifier is indeed No
A: At what frequency does the Voltage-Input-Min?
Q: The product Voltage-Input-Min is 4.5V.
A: What is the Voltage-Input-Max of the product?
Q: The Voltage-Input-Max of the product is 60V.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 0.8 V to 58.8 V.
A: Is the cutoff frequency of the product Input-Voltage?
Q: Yes, the product's Input-Voltage is indeed 4.5 V to 60 V
A: Is the cutoff frequency of the product Input-Voltage-MAX?
Q: Yes, the product's Input-Voltage-MAX is indeed 60 V
A: At what frequency does the Output-Current?
Q: The product Output-Current is 5 A.
A: At what frequency does the Switching-Frequency?
Q: The product Switching-Frequency is 100 kHz to 2.5 MHz.
A: What is the Input-Voltage-MIN of the product?
Q: The Input-Voltage-MIN of the product is 4.5 V.
A: At what frequency does the Development-Kit?
Q: The product Development-Kit is TPS54560EVM-515.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 4.5 V
