TPS61004DGS

TPS61004DGS Overview

Product belongs to the TPS61004 series. Type: Step-Up Converter Tube is the packaging method for this product Weight of 0.000836 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VSSOP-10 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Step-Up. Supplier device package: 10-VSSOP Number-of-Outputs: 1 Topology: Boost feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 2.8V . The value of No is included as a product attribute. The minimum input voltage is 0.8V. The 2.8V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.8 V Maximum Input Voltage: 2.8 V Output current: 100 mA/250 mA Switching frequency is 360 kHz to 840 kHz The product's 800 mV is 5.1 V. Load regulation is 0.25 %.

TPS61004DGS Image

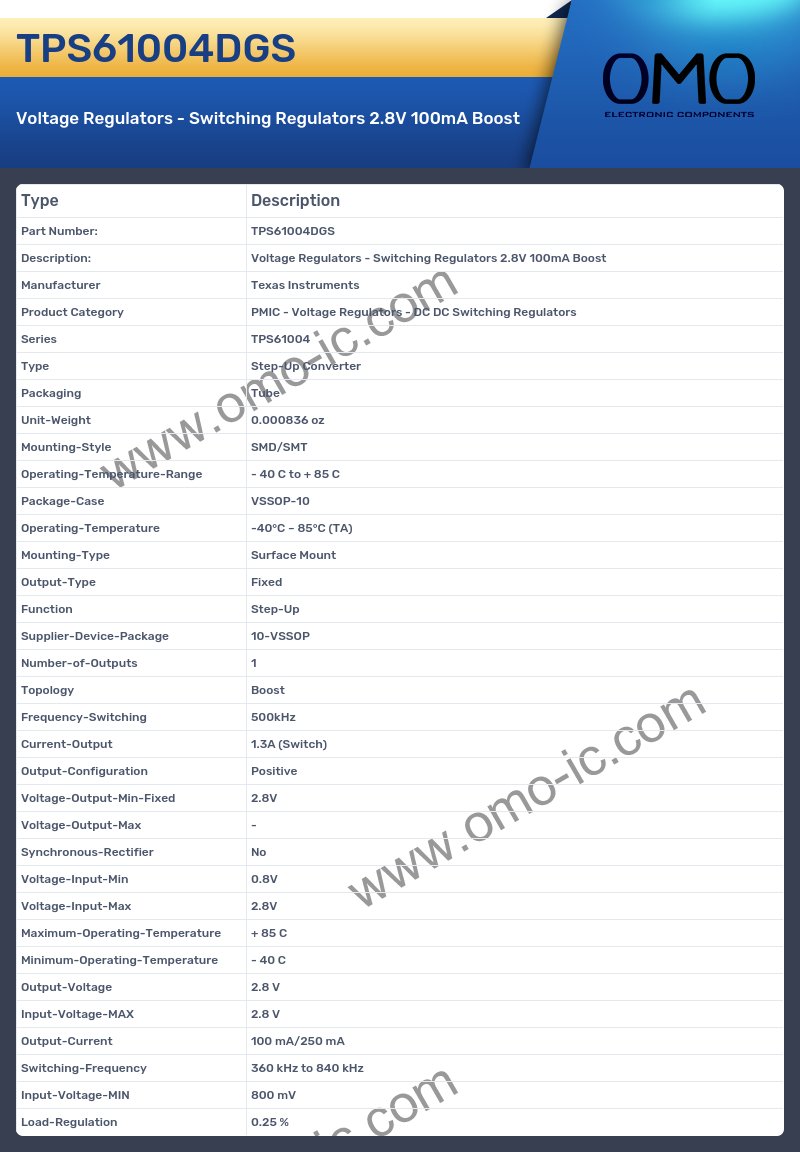

TPS61004DGS Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS61004
• Type Step-Up Converter
• Packaging Tube
• Unit-Weight 0.000836 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VSSOP-10
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Up
• Supplier-Device-Package 10-VSSOP
• Number-of-Outputs 1
• Topology Boost
• Frequency-Switching 500kHz
• Current-Output 1.3A (Switch)
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2.8V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 0.8V
• Voltage-Input-Max 2.8V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.8 V
• Input-Voltage-MAX 2.8 V
• Output-Current 100 mA/250 mA
• Switching-Frequency 360 kHz to 840 kHz
• Input-Voltage-MIN 800 mV
• Load-Regulation 0.25 %
