TPS61042DRBT

TPS61042DRBT Overview

Product belongs to the TPS61042 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000808 oz SMD/SMT Mounting-Style The 3 mm is at most 7.6 mm. VSON-8 This product's 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Constant Current Versatile Backlight applications for maximum usability Supplier device package: 8-SON Exposed Pad (3x3) Number-of-Outputs: 1 Current-Output-Channel is 60mA (Switch) This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 6V. The minimum 1.8V required for voltage supply. Output voltage: 27.5V Dimming control is done through PWM communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 1 MHz. Input Voltage Range: 1.8 V to 6 V Output current: 60 mA Maximum supply current: 65 uA The TPS61042EVM-226. High-Level-Output-Current of 0.03 A

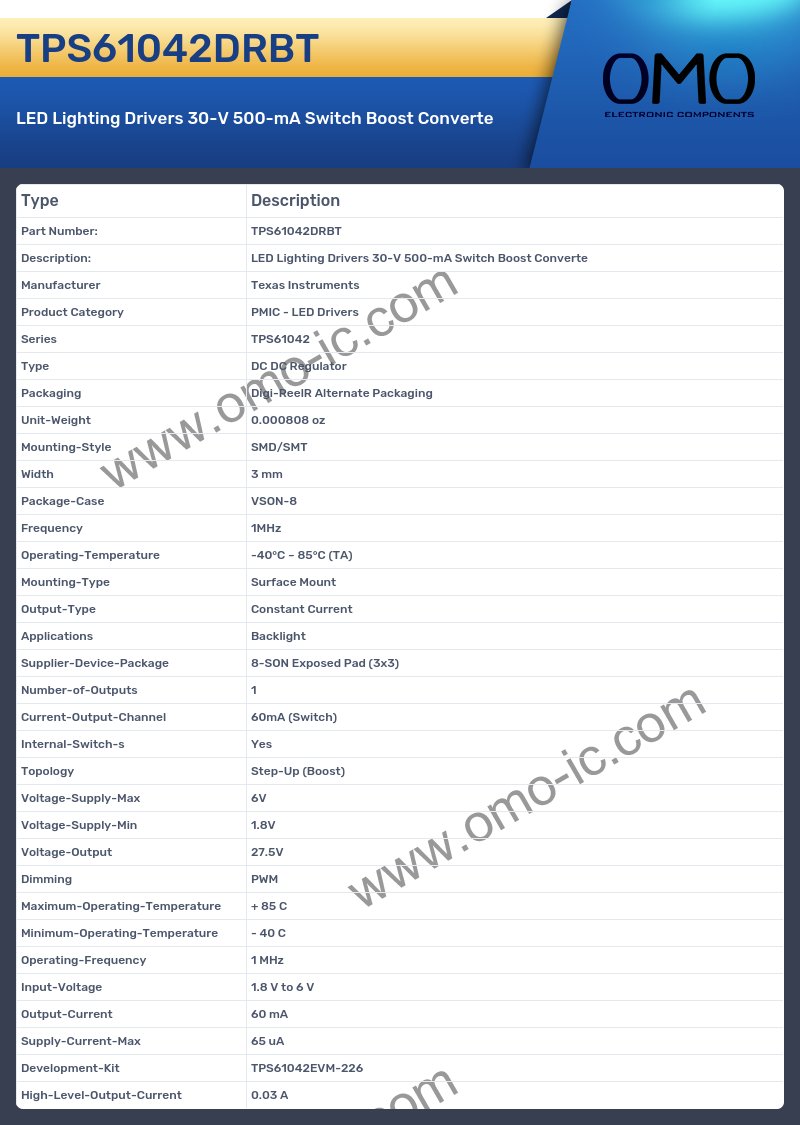

TPS61042DRBT Image

TPS61042DRBT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS61042
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000808 oz
• Mounting-Style SMD/SMT
• Width 3 mm
• Package-Case VSON-8
• Frequency 1MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Constant Current
• Applications Backlight
• Supplier-Device-Package 8-SON Exposed Pad (3x3)
• Number-of-Outputs 1
• Current-Output-Channel 60mA (Switch)
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 6V
• Voltage-Supply-Min 1.8V
• Voltage-Output 27.5V
• Dimming PWM
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 1 MHz
• Input-Voltage 1.8 V to 6 V
• Output-Current 60 mA
• Supply-Current-Max 65 uA
• Development-Kit TPS61042EVM-226
• High-Level-Output-Current 0.03 A
