| Mfr. #: | TPS61196PWPT |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | LED Lighting Drivers 6-String 400mA WLED Drive |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | TPS61196PWPT Datenblatt |
Product belongs to the TPS61196 series. Type: DC DC Controller Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004233 oz SMD/SMT Mounting-Style HTSSOP-28 This product's 800kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: 28-HTSSOP Number-of-Outputs: 6 Current-Output-Channel is 400mA This product has No. Topology: Step-Up (Boost) feedback The maximum voltage supply is 30V. The minimum 8V required for voltage supply. Output voltage: 120V Dimming control is done through PWM communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 100 kHz to 800 kHz. Input Voltage Range: 8 V to 30 V Output current: 400 mA Maximum supply current: 2 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

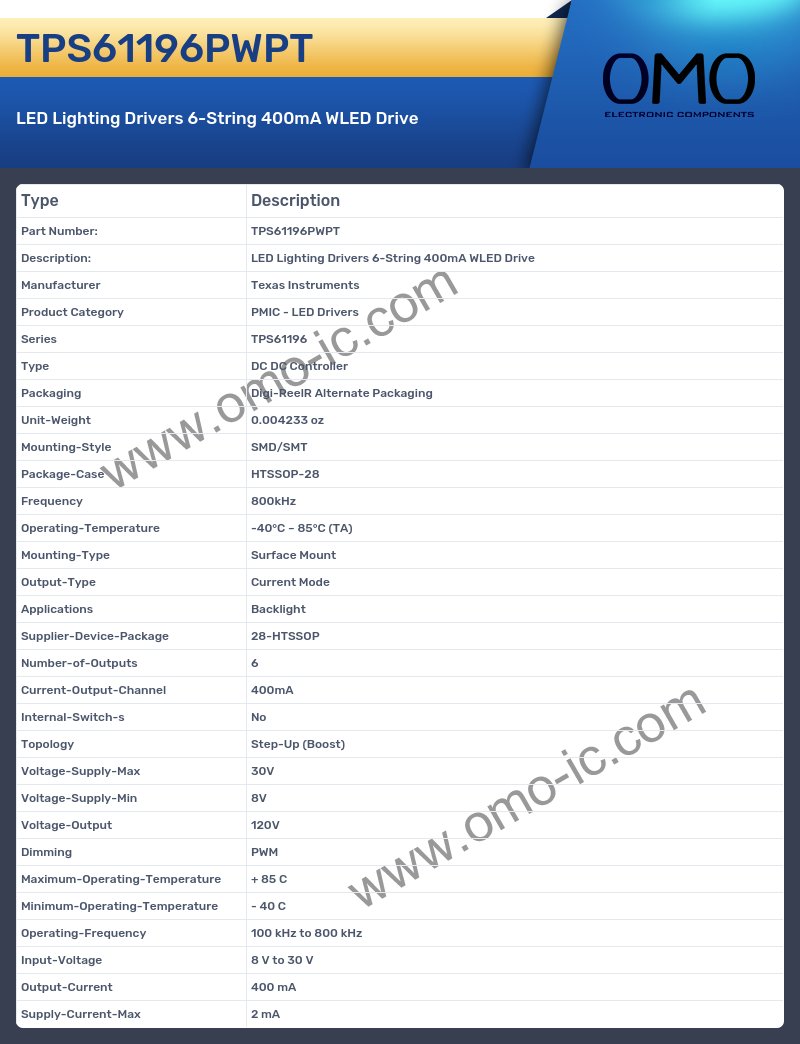

TPS61196PWPT Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed TPS61196
A: At what frequency does the Type?
Q: The product Type is DC DC Controller.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004233 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is HTSSOP-28.
A: At what frequency does the Frequency?
Q: The product Frequency is 800kHz.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C (TA).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is Current Mode.
A: At what frequency does the Applications?
Q: The product Applications is Backlight.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 28-HTSSOP
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 6
A: Is the cutoff frequency of the product Current-Output-Channel?
Q: Yes, the product's Current-Output-Channel is indeed 400mA
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is No.
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Step-Up (Boost)
A: At what frequency does the Voltage-Supply-Max?
Q: The product Voltage-Supply-Max is 30V.
A: At what frequency does the Voltage-Supply-Min?
Q: The product Voltage-Supply-Min is 8V.
A: What is the Voltage-Output of the product?
Q: The Voltage-Output of the product is 120V.
A: At what frequency does the Dimming?
Q: The product Dimming is PWM.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Frequency of the product?
Q: The Operating-Frequency of the product is 100 kHz to 800 kHz.
A: Is the cutoff frequency of the product Input-Voltage?
Q: Yes, the product's Input-Voltage is indeed 8 V to 30 V
A: At what frequency does the Output-Current?
Q: The product Output-Current is 400 mA.
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 2 mA.
