TPS71750DSER

TPS71750DSER Overview

Product belongs to the TPS71750 series. This product is categorized as LDO Regulator Type: Low Noise Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-WSON (1.5x1.5) Up to 6.5V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 485 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 6.5 V Output current: 150 mA The product's 2.5 V is 5.1 V. Load regulation is 120 uV / mA. The voltage regulation accuracy of this product is 3 %. The maximum 300 mV is 360 mV. This product's 125 uV/V is 0.01 %/V. The product's 70 dB is -20 dB.

TPS71750DSER Image

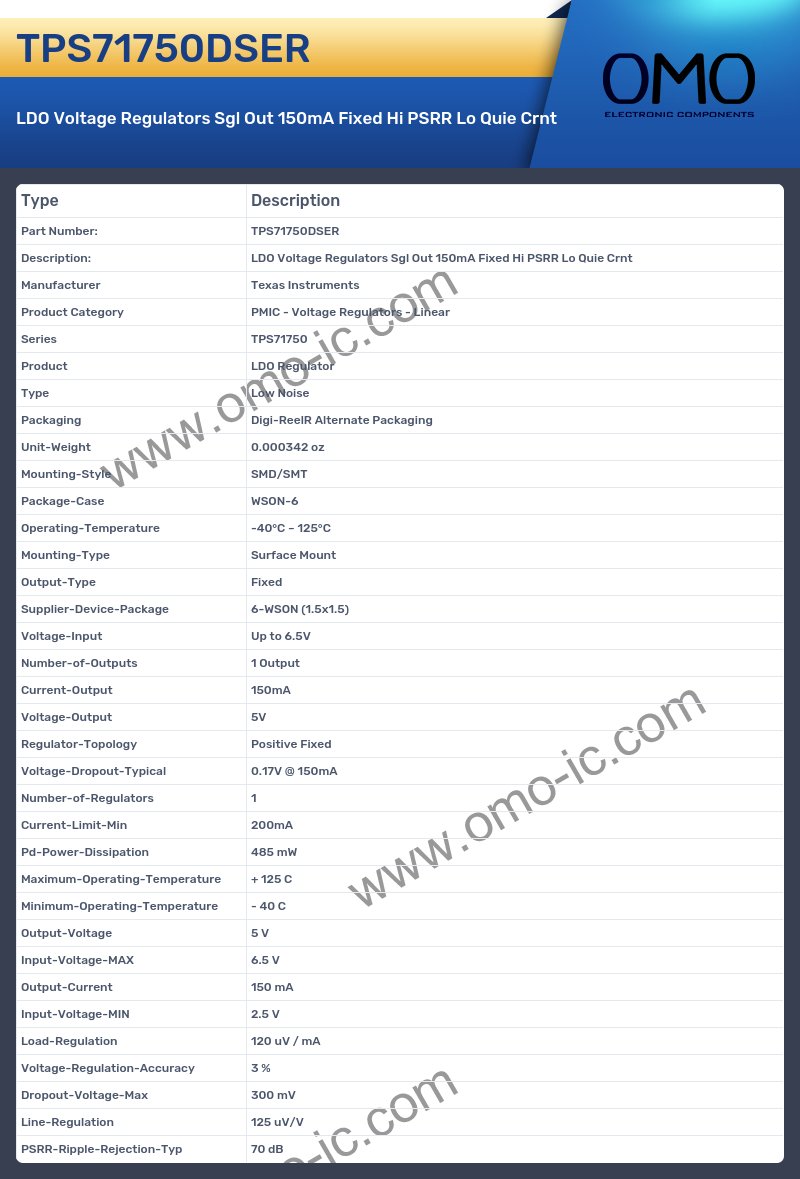

TPS71750DSER Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS71750
• Product LDO Regulator
• Type Low Noise
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-WSON (1.5x1.5)
• Voltage-Input Up to 6.5V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.17V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min 200mA
• Pd-Power-Dissipation 485 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 6.5 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.5 V
• Load-Regulation 120 uV / mA
• Voltage-Regulation-Accuracy 3 %
• Dropout-Voltage-Max 300 mV
• Line-Regulation 125 uV/V
• PSRR-Ripple-Rejection-Typ 70 dB
