TPS72301DBVR

TPS72301DBVR Overview

Product belongs to the TPS72301 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 -2.7 V ~ -10 V voltage input Number-of-Outputs: 1 Output Output voltage: -1.2 V ~ -10 V Negative Adjustable regulator topology The product has 1 of 1. Power-off control: 0.56 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 1.2 V to - 10 V Maximum Input Voltage: - 10 V Output current: 200 mA The product's - 2.7 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 1 %. Input bias current of 130 uA This product has a 200 uA of 7 mA, making it ideal for low-power applications. Reference voltage is - 1.186 V . The 0.28 V at 200 mA. This product's 0.04 % / V is 0.01 %/V.

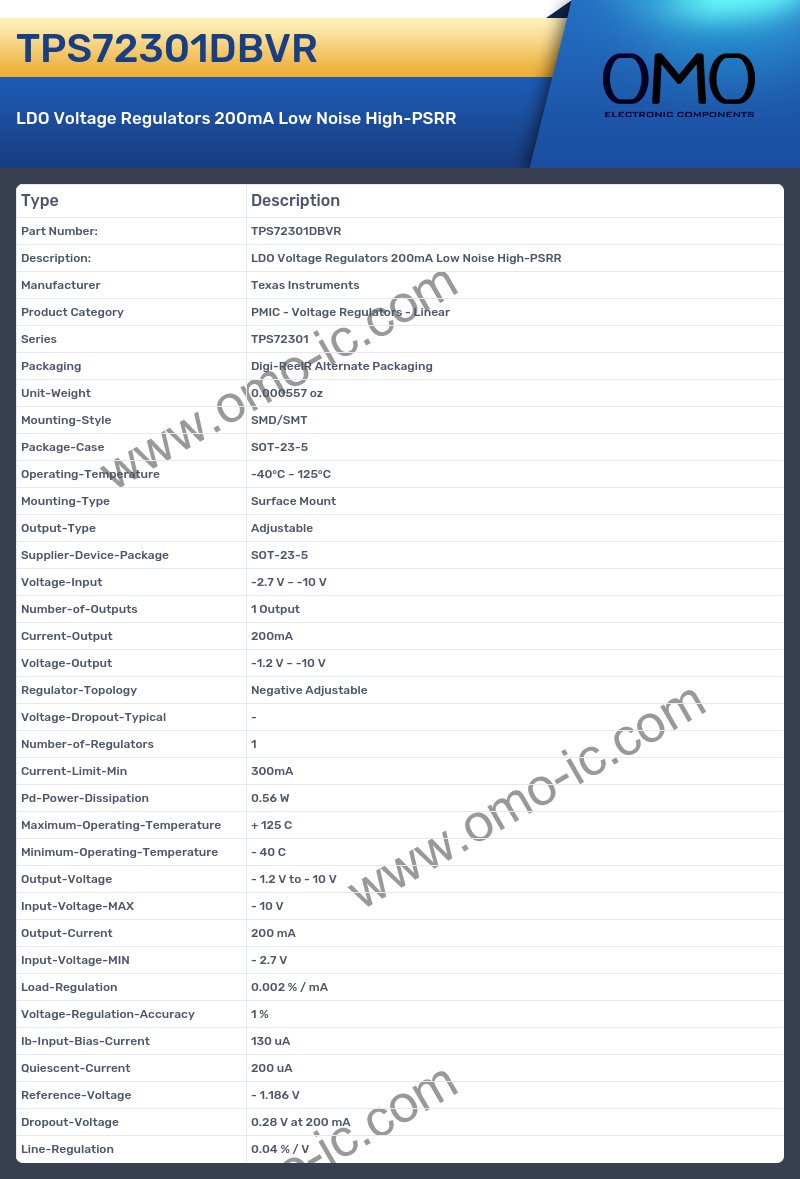

TPS72301DBVR Image

TPS72301DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72301
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Voltage-Input -2.7 V ~ -10 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output -1.2 V ~ -10 V
• Regulator-Topology Negative Adjustable
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 300mA
• Pd-Power-Dissipation 0.56 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 1.2 V to - 10 V
• Input-Voltage-MAX - 10 V
• Output-Current 200 mA
• Input-Voltage-MIN - 2.7 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 130 uA
• Quiescent-Current 200 uA
• Reference-Voltage - 1.186 V
• Dropout-Voltage 0.28 V at 200 mA
• Line-Regulation 0.04 % / V
