TPS72325DBVR Overview

Product belongs to the TPS72325 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 -2.7 V ~ -10 V voltage input Number-of-Outputs: 1 Output Output voltage: -2.5V Negative Fixed regulator topology The product has 1 of 1. Power-off control: 0.56 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 2.5 V Maximum Input Voltage: - 10 V Output current: 200 mA The product's - 2.7 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 1 %. Input bias current of 130 uA The 0.28 V at 200 mA. The maximum 500 mV at 200 mA is 360 mV. This product's 0.04 % / V is 0.01 %/V.

TPS72325DBVR Image

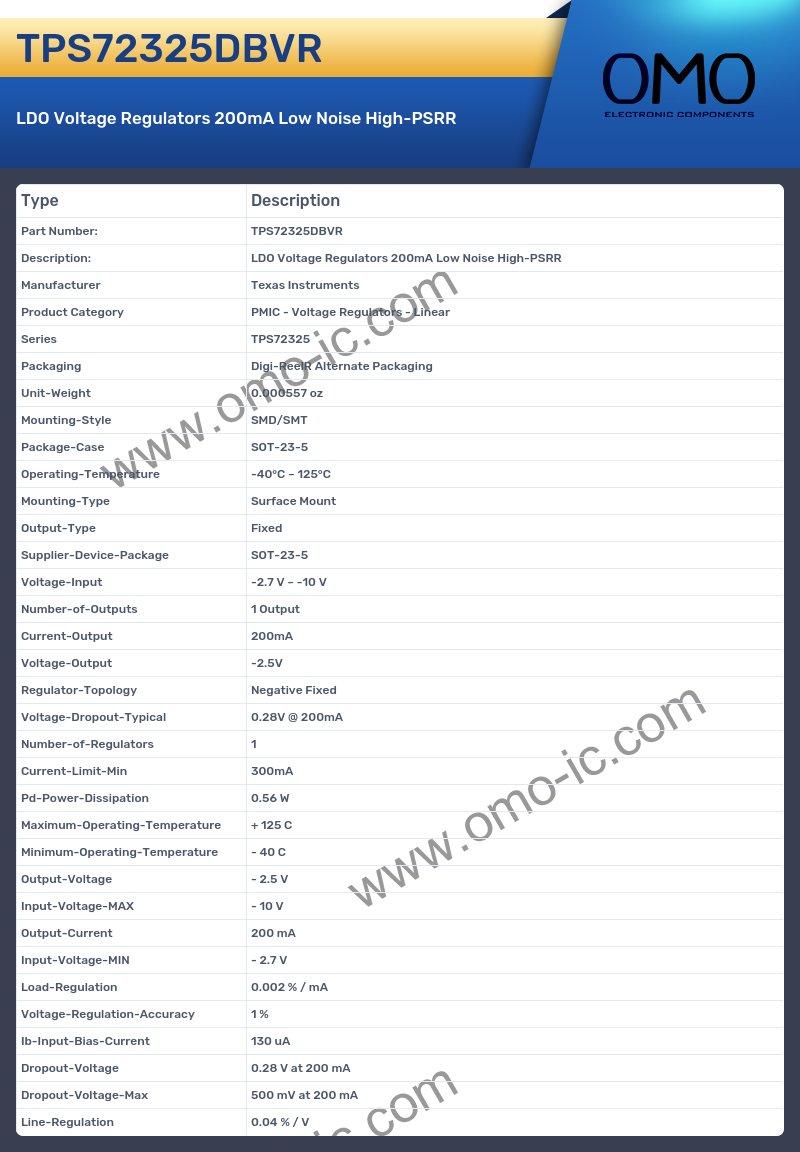

TPS72325DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72325
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input -2.7 V ~ -10 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output -2.5V
• Regulator-Topology Negative Fixed
• Voltage-Dropout-Typical 0.28V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min 300mA
• Pd-Power-Dissipation 0.56 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 2.5 V
• Input-Voltage-MAX - 10 V
• Output-Current 200 mA
• Input-Voltage-MIN - 2.7 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 130 uA
• Dropout-Voltage 0.28 V at 200 mA
• Dropout-Voltage-Max 500 mV at 200 mA
• Line-Regulation 0.04 % / V
