TS5V330CDBQR

TS5V330CDBQR Overview

Product belongs to the TS5V330C series. This product is categorized as Video Switches Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002628 oz SMD/SMT Mounting-Style SSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Switch. Supplier device package: 16-SSOP - is 8. Voltage supply source: Analog and digital Single Supply Configuration 4 x SPDT Circuit type: 4 x SPDT 10 Ohm maximum on-state resistance Voltage supply range: 4 V ~ 5.5 V This product has a 3μA of 200μA. The - 250 MHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Single Supply supply type Max on-resistance of 10 Ohms Maximum off time: 5.9 ns 4 Switch switch functionality Maximum on-time: 6 ns The maximum switch voltage for this product is 4.5 V The 100 mA

TS5V330CDBQR Image

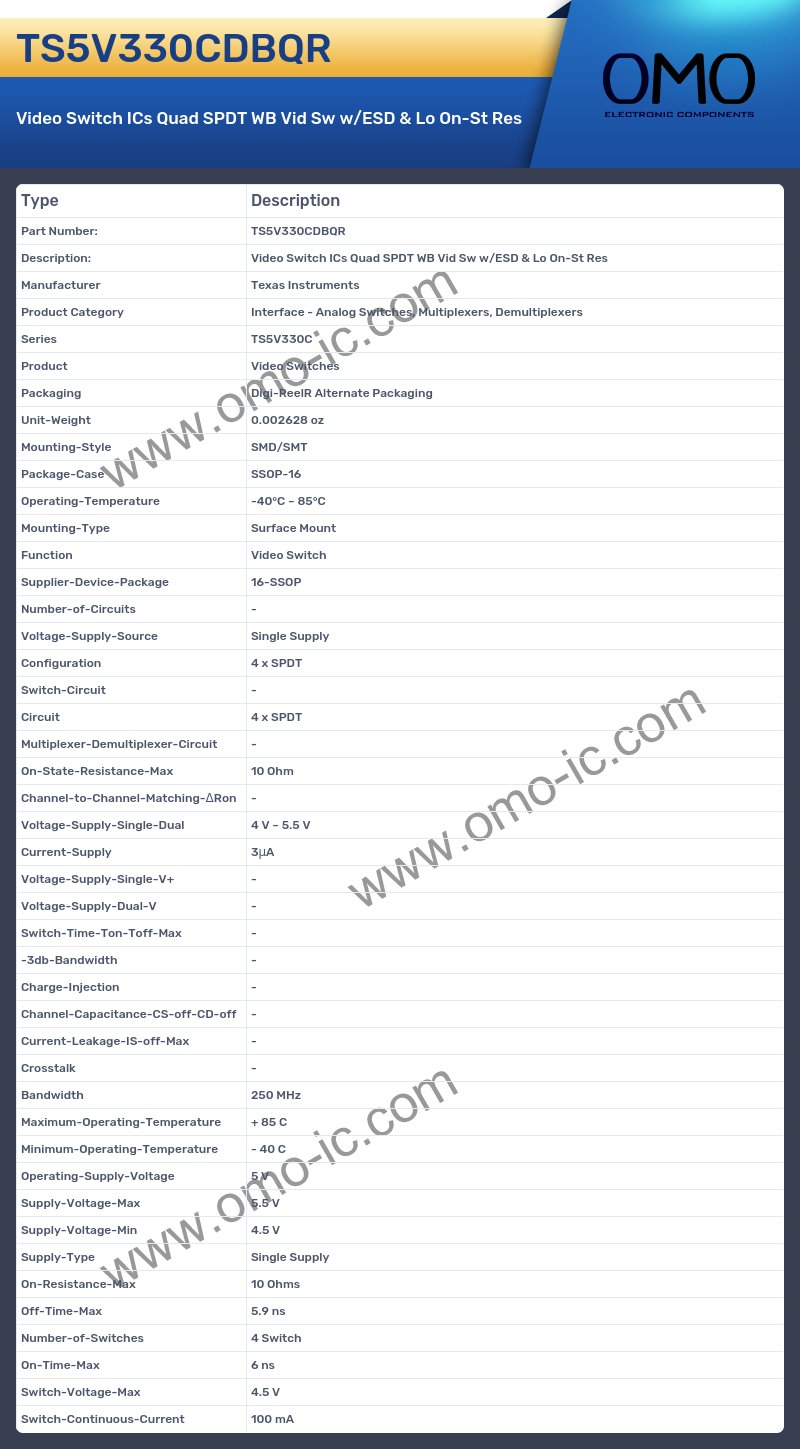

TS5V330CDBQR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TS5V330C
• Product Video Switches
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002628 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Switch
• Supplier-Device-Package 16-SSOP
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 4 x SPDT
• Switch-Circuit -
• Circuit 4 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 10 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 4 V ~ 5.5 V
• Current-Supply 3μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 250 MHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Supply-Type Single Supply
• On-Resistance-Max 10 Ohms
• Off-Time-Max 5.9 ns
• Number-of-Switches 4 Switch
• On-Time-Max 6 ns
• Switch-Voltage-Max 4.5 V
• Switch-Continuous-Current 100 mA
