TYN810RG

TYN810RG Overview

Product belongs to the TYN810 series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-220AB 30mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.5V 15mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 6.4A Current-On-State-It-AV-Max 10A is the maximum Current-On-State-It-RMS. 10μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 100A, 105A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 0.2 V Rated Repetitive Off-State Voltage VDRM; 30 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.5 V on this product. Gate-Trigger-Current-Igt: 15 mA; 105 A Non-Repetitive On-State Current The 10 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 1.6 V

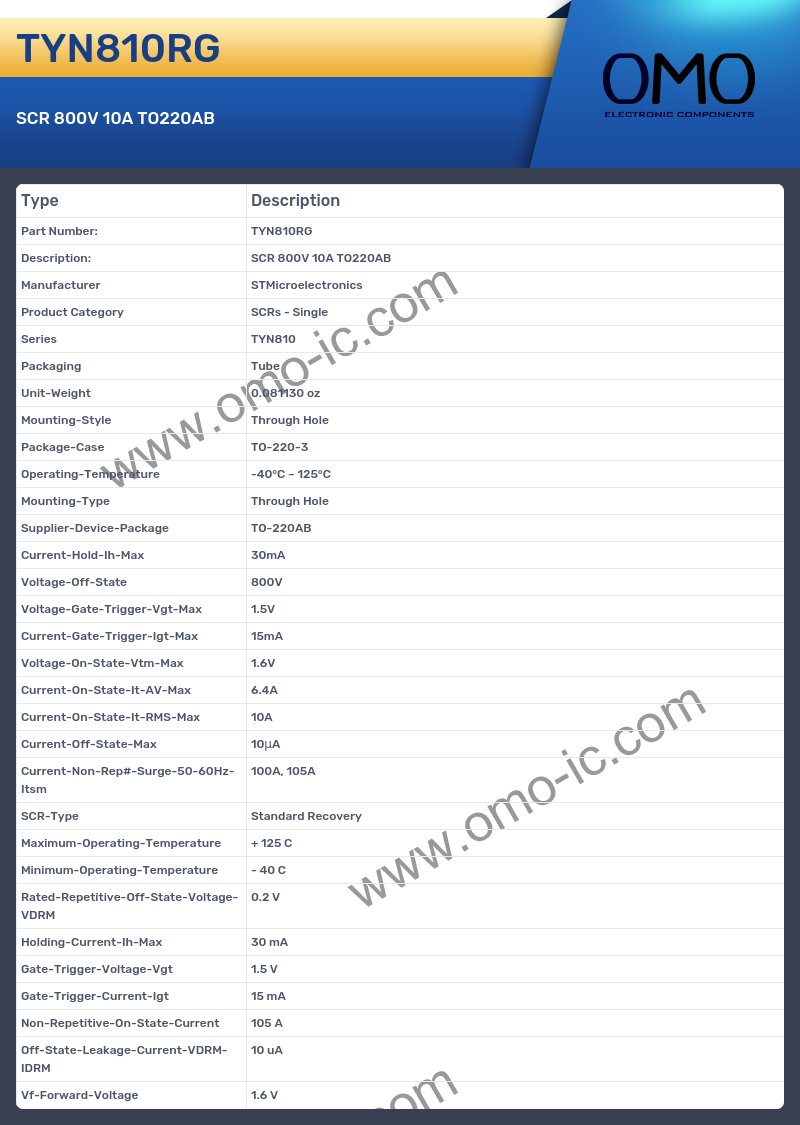

TYN810RG Image

TYN810RG Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TYN810
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Current-Hold-Ih-Max 30mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.5V
• Current-Gate-Trigger-Igt-Max 15mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 6.4A
• Current-On-State-It-RMS-Max 10A
• Current-Off-State-Max 10μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 100A, 105A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 0.2 V
• Holding-Current-Ih-Max 30 mA
• Gate-Trigger-Voltage-Vgt 1.5 V
• Gate-Trigger-Current-Igt 15 mA
• Non-Repetitive-On-State-Current 105 A
• Off-State-Leakage-Current-VDRM-IDRM 10 uA
• Vf-Forward-Voltage 1.6 V
