UA747CN

UA747CN Overview

Product belongs to the UA747 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style Bipolar is the technology used. Number of channels: 2 Channel The amplifier is of General Purpose Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2.8 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 7 V PDIP-14 Input bias current of 500 nA The 6 mV. The Negative Rail + 3 V to Positive Rail - 3 V. The CMRR-Common-Mode-Rejection-Ratio is 70 dB. Maximum dual supply voltage: +/- 18 V Minimum dual supply voltage of +/- 3.5 V

UA747CN Image

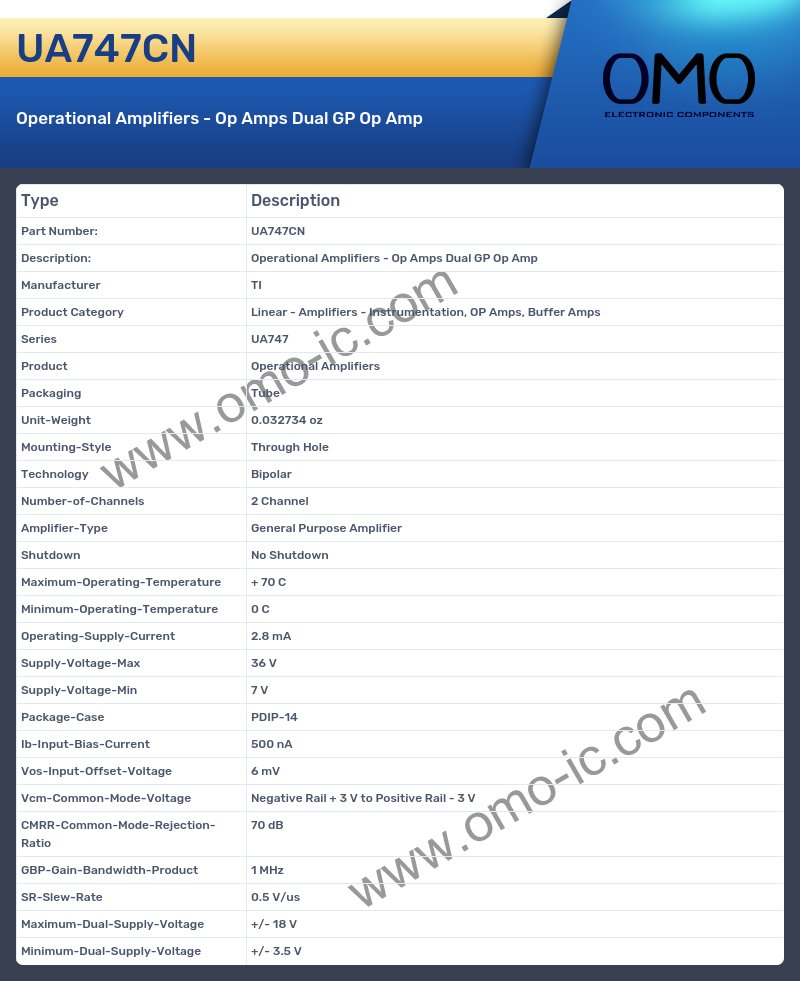

UA747CN Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series UA747
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Technology Bipolar
• Number-of-Channels 2 Channel
• Amplifier-Type General Purpose Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2.8 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 7 V
• Package-Case PDIP-14
• Ib-Input-Bias-Current 500 nA
• Vos-Input-Offset-Voltage 6 mV
• Vcm-Common-Mode-Voltage Negative Rail + 3 V to Positive Rail - 3 V
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 1 MHz
• SR-Slew-Rate 0.5 V/us
• Maximum-Dual-Supply-Voltage +/- 18 V
• Minimum-Dual-Supply-Voltage +/- 3.5 V
