| Mfr. #: | UC1844AMDREP |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Switching Controllers Mil Enh Current-Mode PWM Cntrl |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | UC1844AMDREP Datenblatt |
Product belongs to the UC1844A-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002667 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost Buck Flyback Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output current: 1000 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. This product is also known as V62/03625-03YE and can be referred to by either part number. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

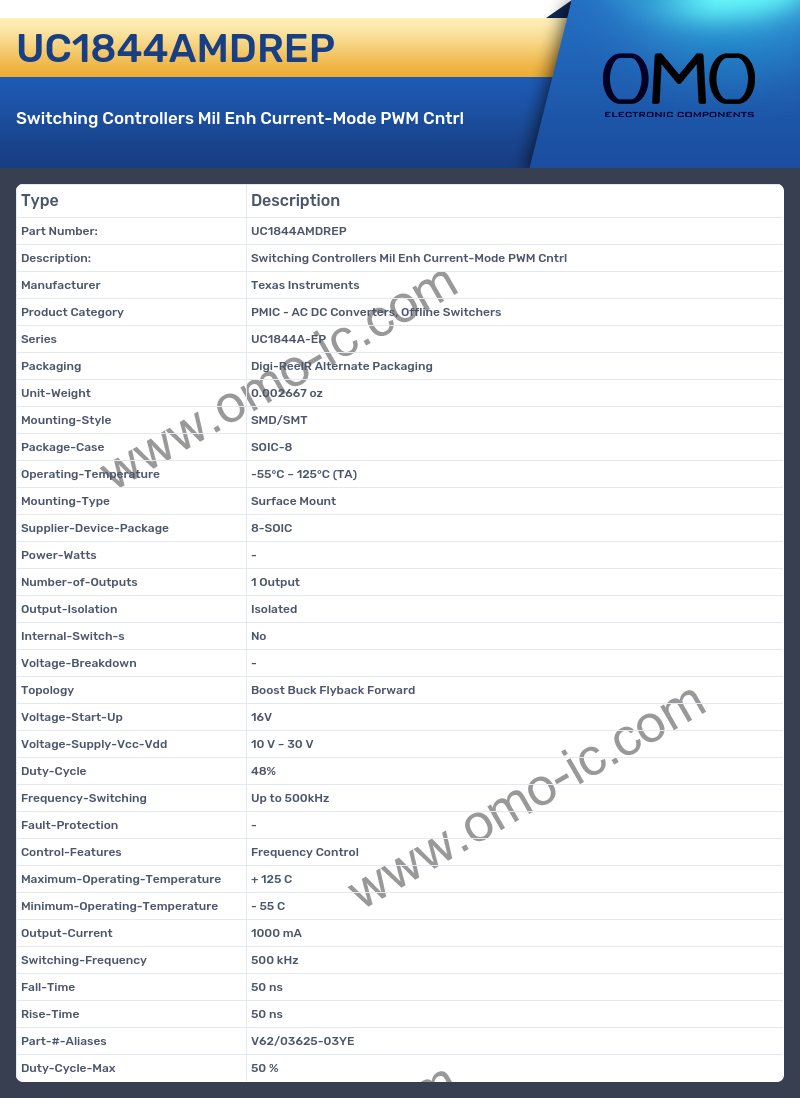

UC1844AMDREP Specifications
