| Mfr. #: | UC2844BD1 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IC REG CTRLR BST FLYBK ISO 8-SO |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | UC2844BD1 Datenblatt |
Product belongs to the UC2844B series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 30 V supply voltage for reliable performance. Output voltage: 4.95 V to 5.05 V Output current: 1000 mA Switching frequency is 500 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

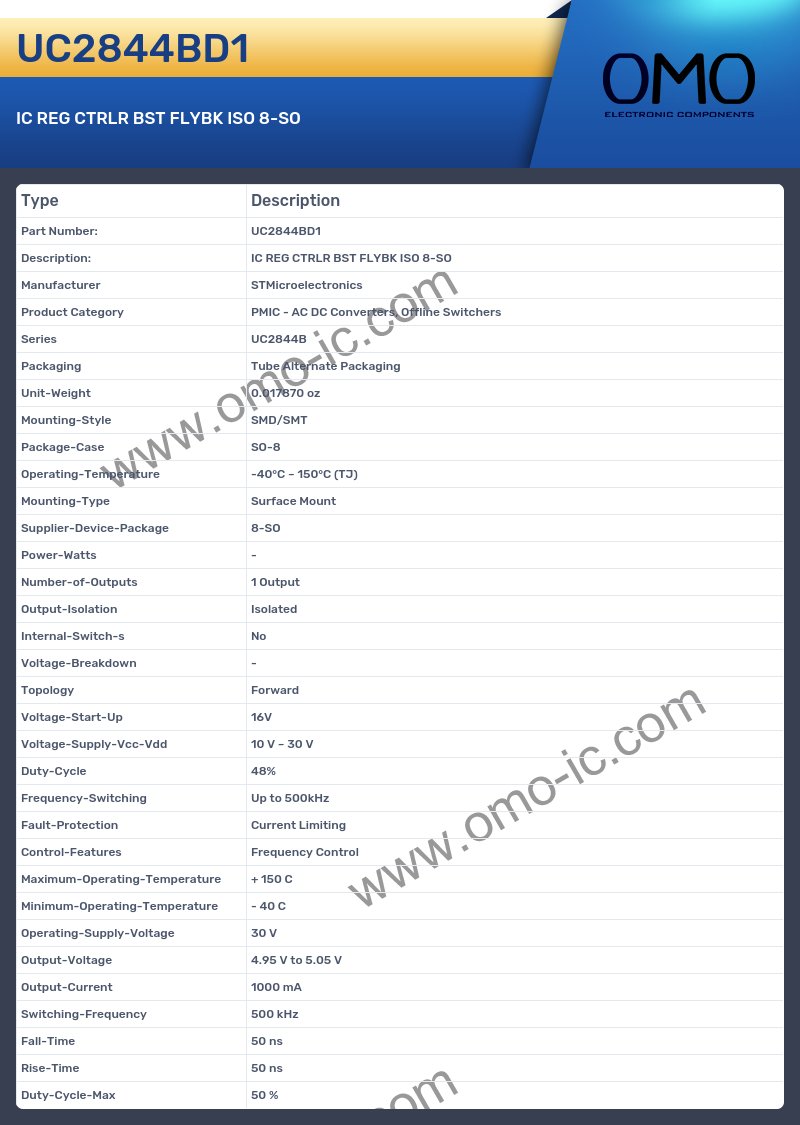

UC2844BD1 Specifications
A: At what frequency does the Series?
Q: The product Series is UC2844B.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.017870 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SO-8
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 150°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SO
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: Is the cutoff frequency of the product Output-Isolation?
Q: Yes, the product's Output-Isolation is indeed Isolated
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is No.
A: What is the Topology of the product?
Q: The Topology of the product is Forward.
A: At what frequency does the Voltage-Supply-Vcc-Vdd?
Q: The product Voltage-Supply-Vcc-Vdd is 10 V ~ 30 V.
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is Up to 500kHz.
A: At what frequency does the Control-Features?
Q: The product Control-Features is Frequency Control.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 30 V
A: At what frequency does the Output-Voltage?
Q: The product Output-Voltage is 4.95 V to 5.05 V.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1000 mA.
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 500 kHz
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 50 ns
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 50 ns.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 50 %
