UC3842AD

UC3842AD Overview

Product belongs to the UC3842A series. Tube is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 8-SOP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 100 %

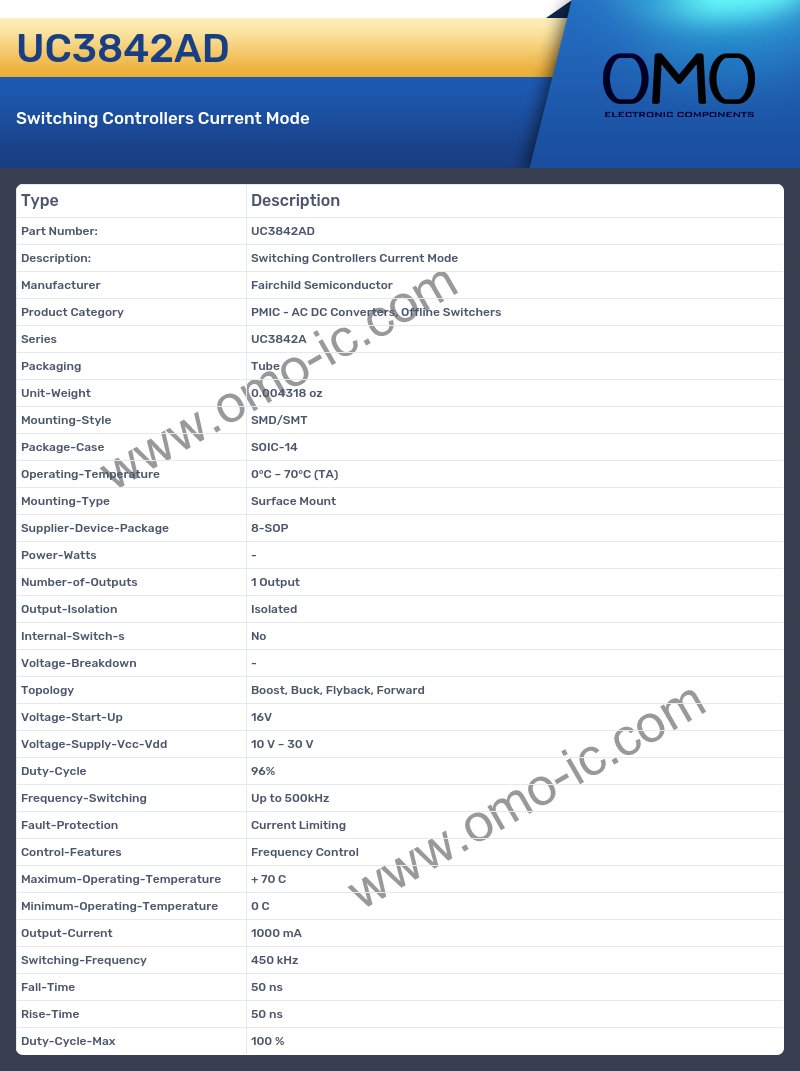

UC3842AD Image

UC3842AD Specifications

• Manufacturer Fairchild Semiconductor
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UC3842A
• Packaging Tube
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOP
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Buck, Flyback, Forward
• Voltage-Start-Up 16V
• Voltage-Supply-Vcc-Vdd 10 V ~ 30 V
• Duty-Cycle 96%
• Frequency-Switching Up to 500kHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Current 1000 mA
• Switching-Frequency 450 kHz
• Fall-Time 50 ns
• Rise-Time 50 ns
• Duty-Cycle-Max 100 %
