UC3862N

UC3862N Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) * mounting type Supplier device package: 16-PDIP Output-Isolation: Non-Isolated This product has Yes. Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 10.5 V ~ 22 V This product features 'Frequency-Switching' at 10kHz ~ 1MHz for optimal performance. The Control-Features include Soft Start function.

UC3862N Image

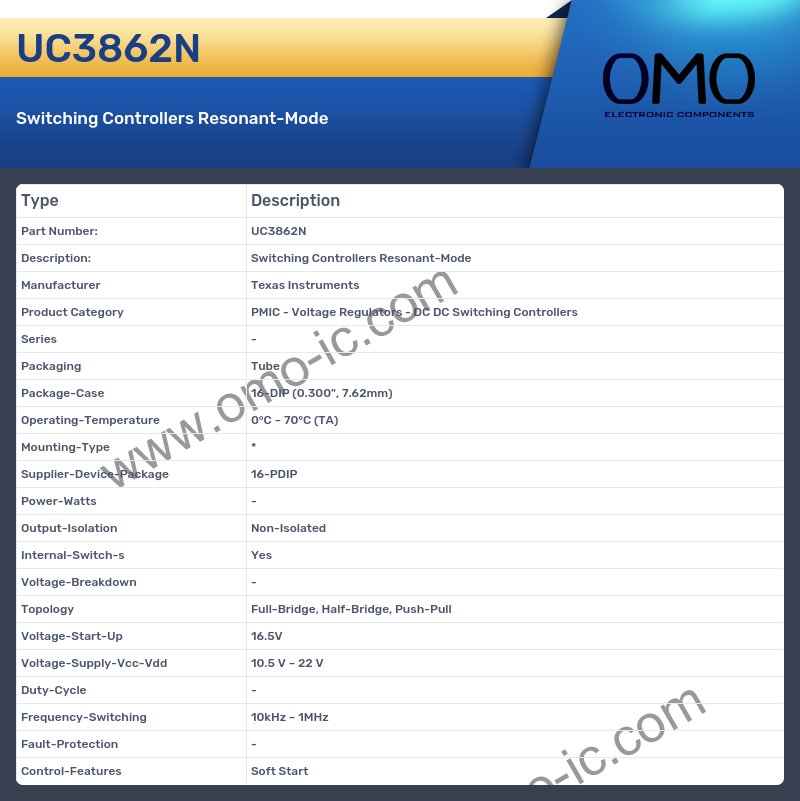

UC3862N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type *
• Supplier-Device-Package 16-PDIP
• Power-Watts -
• Output-Isolation Non-Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown -
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Start-Up 16.5V
• Voltage-Supply-Vcc-Vdd 10.5 V ~ 22 V
• Duty-Cycle -
• Frequency-Switching 10kHz ~ 1MHz
• Fault-Protection -
• Control-Features Soft Start
