UCC24610DRBT

UCC24610DRBT Overview

Product belongs to the GREEN Rectifier series. This product is categorized as MOSFET Gate Drivers Type: Flyback and LLC Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000847 oz SMD/SMT Mounting-Style VSON-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Versatile Flyback, Forward Converters, LLC applications for maximum usability Voltage Supply Range: - Supplier device package: 8-SON Exposed Pad (3x3) Configuration Single 4.5 V ~ 5.5 V voltage input This product has a 2.15mA of 200μA. Number-of-Outputs: 1 Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.5 V to 5.5 V 70 uA is 92 nA. Output current: 3 A This product has a 9 ns of 16 ns. This product has a 14 ns of 16 ns. The UCC24610EVM-693. Maximum supply voltage of 6.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 35 ns. 70 ns maximum turn-on delay time

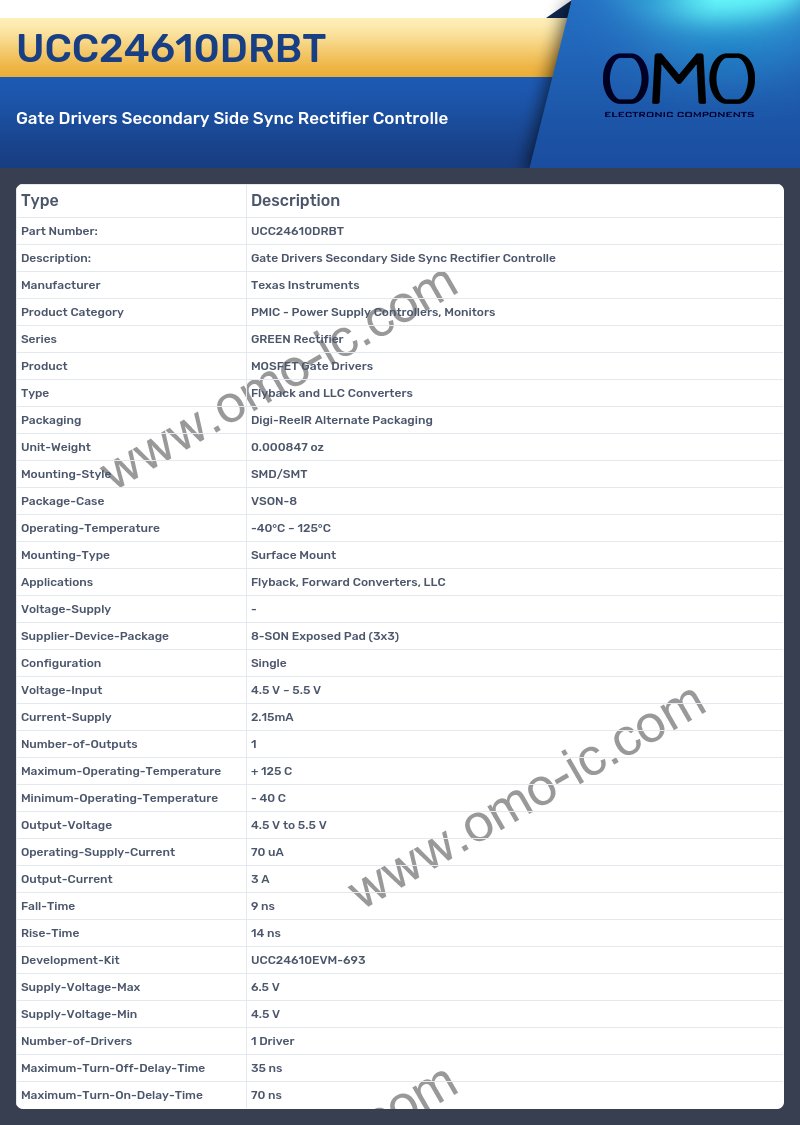

UCC24610DRBT Image

UCC24610DRBT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Supply Controllers, Monitors
• Series GREEN Rectifier
• Product MOSFET Gate Drivers
• Type Flyback and LLC Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000847 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Applications Flyback, Forward Converters, LLC
• Voltage-Supply -
• Supplier-Device-Package 8-SON Exposed Pad (3x3)
• Configuration Single
• Voltage-Input 4.5 V ~ 5.5 V
• Current-Supply 2.15mA
• Number-of-Outputs 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.5 V to 5.5 V
• Operating-Supply-Current 70 uA
• Output-Current 3 A
• Fall-Time 9 ns
• Rise-Time 14 ns
• Development-Kit UCC24610EVM-693
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 35 ns
• Maximum-Turn-On-Delay-Time 70 ns
