UCC2813N-2

UCC2813N-2 Overview

Product belongs to the - series. Tube is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-PDIP Output-Isolation: Non-Isolated This product has Yes. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control function.

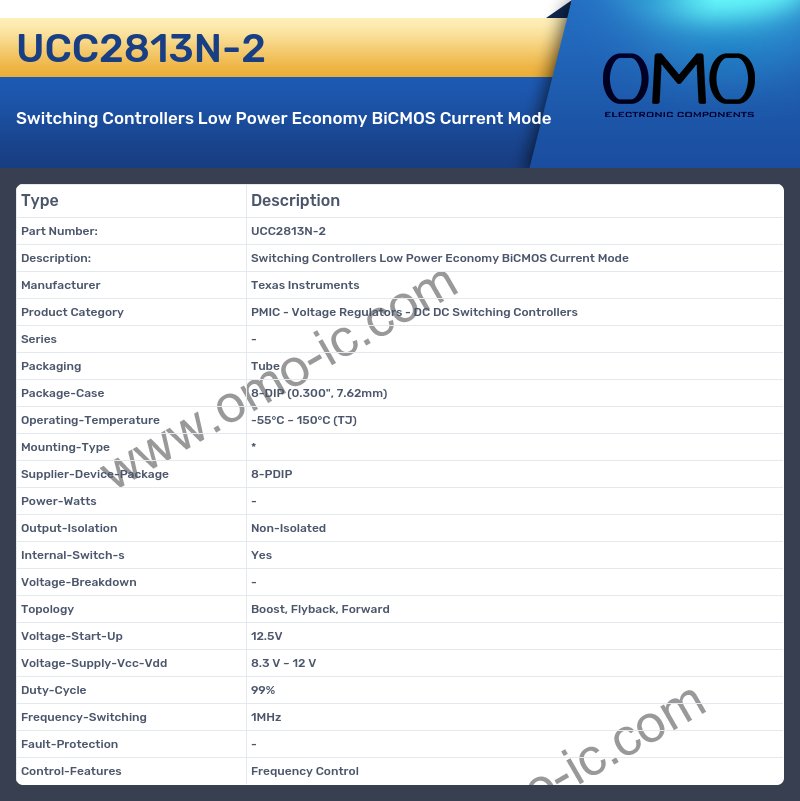

UCC2813N-2 Image

UCC2813N-2 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 8-PDIP
• Power-Watts -
• Output-Isolation Non-Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown -
• Topology Boost, Flyback, Forward
• Voltage-Start-Up 12.5V
• Voltage-Supply-Vcc-Vdd 8.3 V ~ 12 V
• Duty-Cycle 99%
• Frequency-Switching 1MHz
• Fault-Protection -
• Control-Features Frequency Control
