UCC3804NG4

UCC3804NG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) * mounting type Supplier device package: 8-PDIP Output-Isolation: - This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function.

UCC3804NG4 Image

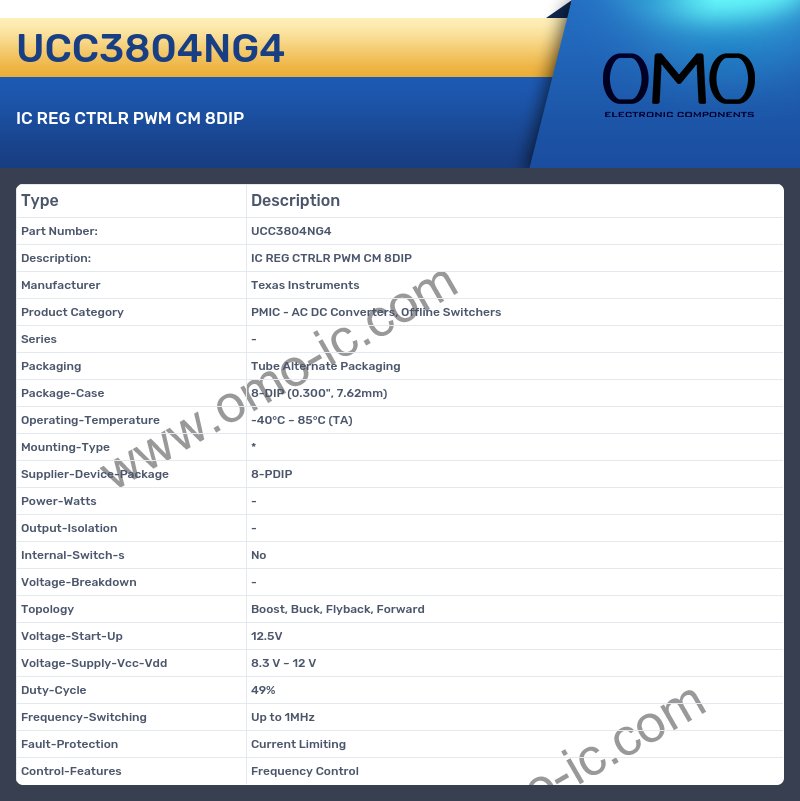

UCC3804NG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type *
• Supplier-Device-Package 8-PDIP
• Power-Watts -
• Output-Isolation -
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Buck, Flyback, Forward
• Voltage-Start-Up 12.5V
• Voltage-Supply-Vcc-Vdd 8.3 V ~ 12 V
• Duty-Cycle 49%
• Frequency-Switching Up to 1MHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control
