| Mfr. #: | UCC3808AD-2 |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Switching Controllers Low-Pwr Current-Mode Push-Pull PWM |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | UCC3808AD-2 Datenblatt |
Product belongs to the UCC3808A-2 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 2 Topology: Push-Pull feedback Supply Voltage: 4.1 V ~ 15 V This product features 'Frequency-Switching' at 194kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 25 ns of 16 ns. This product has a 25 ns of 16 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

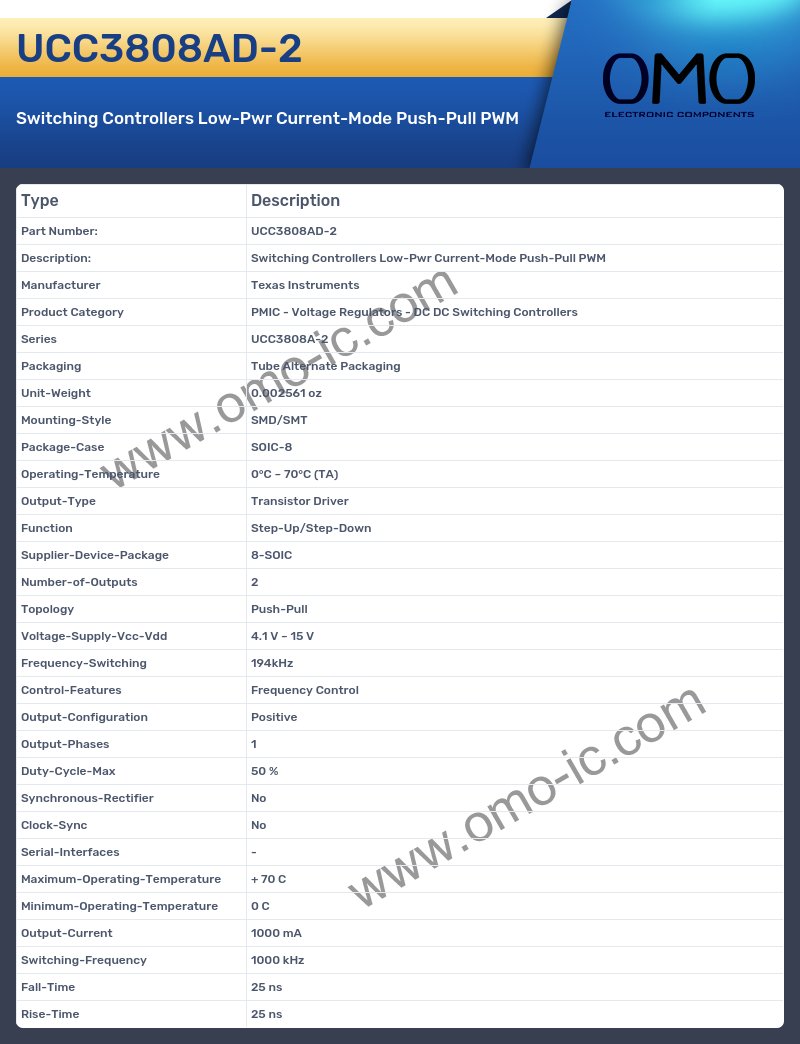

UCC3808AD-2 Specifications
A: What is the Series of the product?
Q: The Series of the product is UCC3808A-2.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002561 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-8.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C (TA).
A: At what frequency does the Output-Type?
Q: The product Output-Type is Transistor Driver.
A: Is the cutoff frequency of the product Function?
Q: Yes, the product's Function is indeed Step-Up/Step-Down
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SOIC.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 2.
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Push-Pull
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 4.1 V ~ 15 V
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is 194kHz.
A: At what frequency does the Control-Features?
Q: The product Control-Features is Frequency Control.
A: Is the cutoff frequency of the product Output-Configuration?
Q: Yes, the product's Output-Configuration is indeed Positive
A: Is the cutoff frequency of the product Output-Phases?
Q: Yes, the product's Output-Phases is indeed 1
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 50 %
A: What is the Synchronous-Rectifier of the product?
Q: The Synchronous-Rectifier of the product is No.
A: What is the Clock-Sync of the product?
Q: The Clock-Sync of the product is No.
A: At what frequency does the Serial-Interfaces?
Q: The product Serial-Interfaces is -.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1000 mA.
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 1000 kHz.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 25 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 25 ns.
