UCC3808N-2G4

UCC3808N-2G4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 8-PDIP Number-of-Outputs: 2 Topology: Push-Pull feedback Supply Voltage: 4.1 V ~ 15 V This product features 'Frequency-Switching' at 194kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.49 The value of No is included as a product attribute. No enabled Serial Interfaces: -

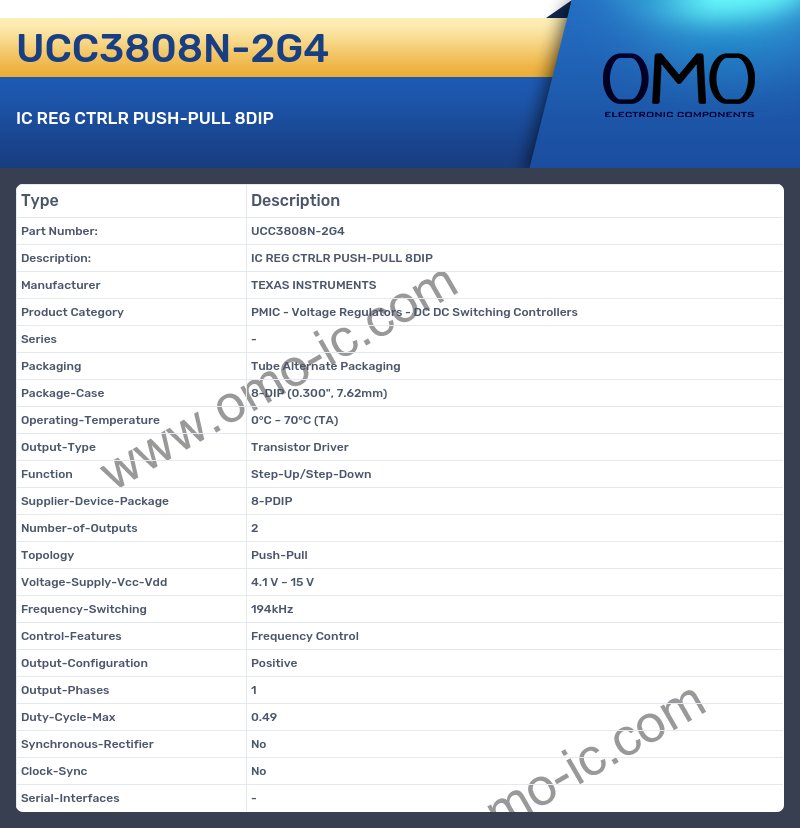

UCC3808N-2G4 Image

UCC3808N-2G4 Specifications

• Manufacturer TEXAS INSTRUMENTS
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 2
• Topology Push-Pull
• Voltage-Supply-Vcc-Vdd 4.1 V ~ 15 V
• Frequency-Switching 194kHz
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.49
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
