| Mfr. #: | UCC3813N-4 |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Switching Controllers LP BiCMOS C Mode |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | UCC3813N-4 Datenblatt |
Product belongs to the UCC3813-4 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.018455 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 8-PDIP Number-of-Outputs: 1 Output Output-Isolation: Non-Isolated This product has Yes. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

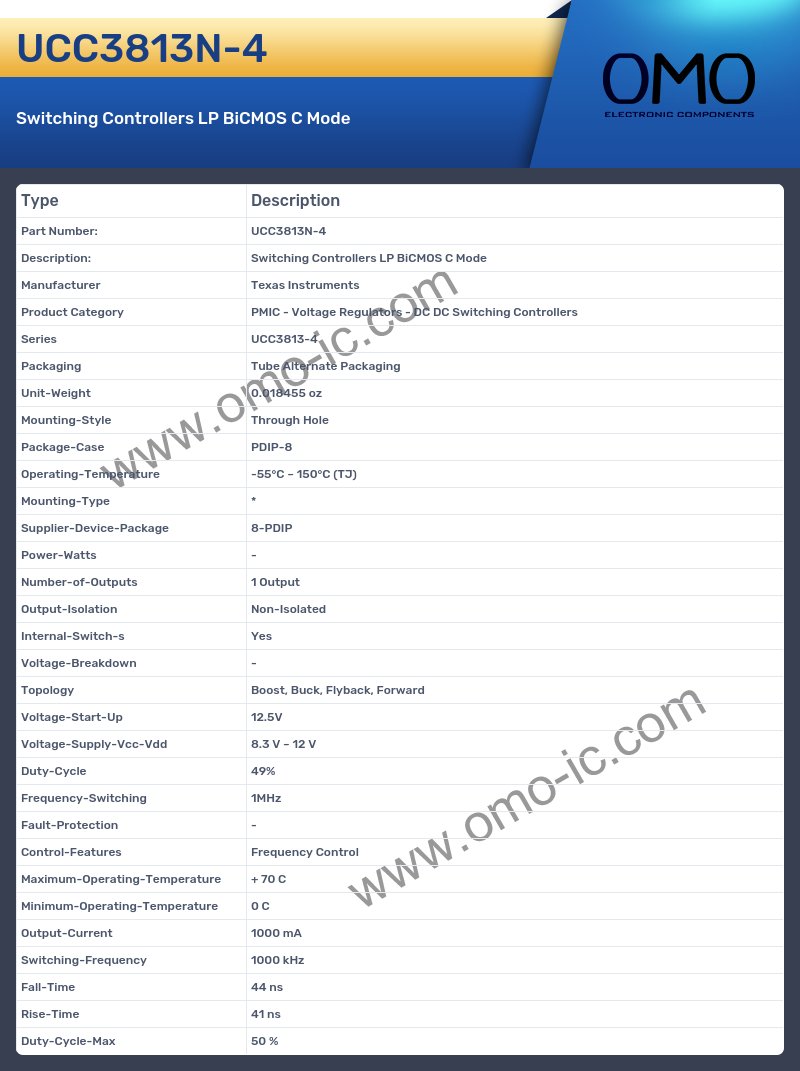

UCC3813N-4 Specifications
